Brand: DESTACO

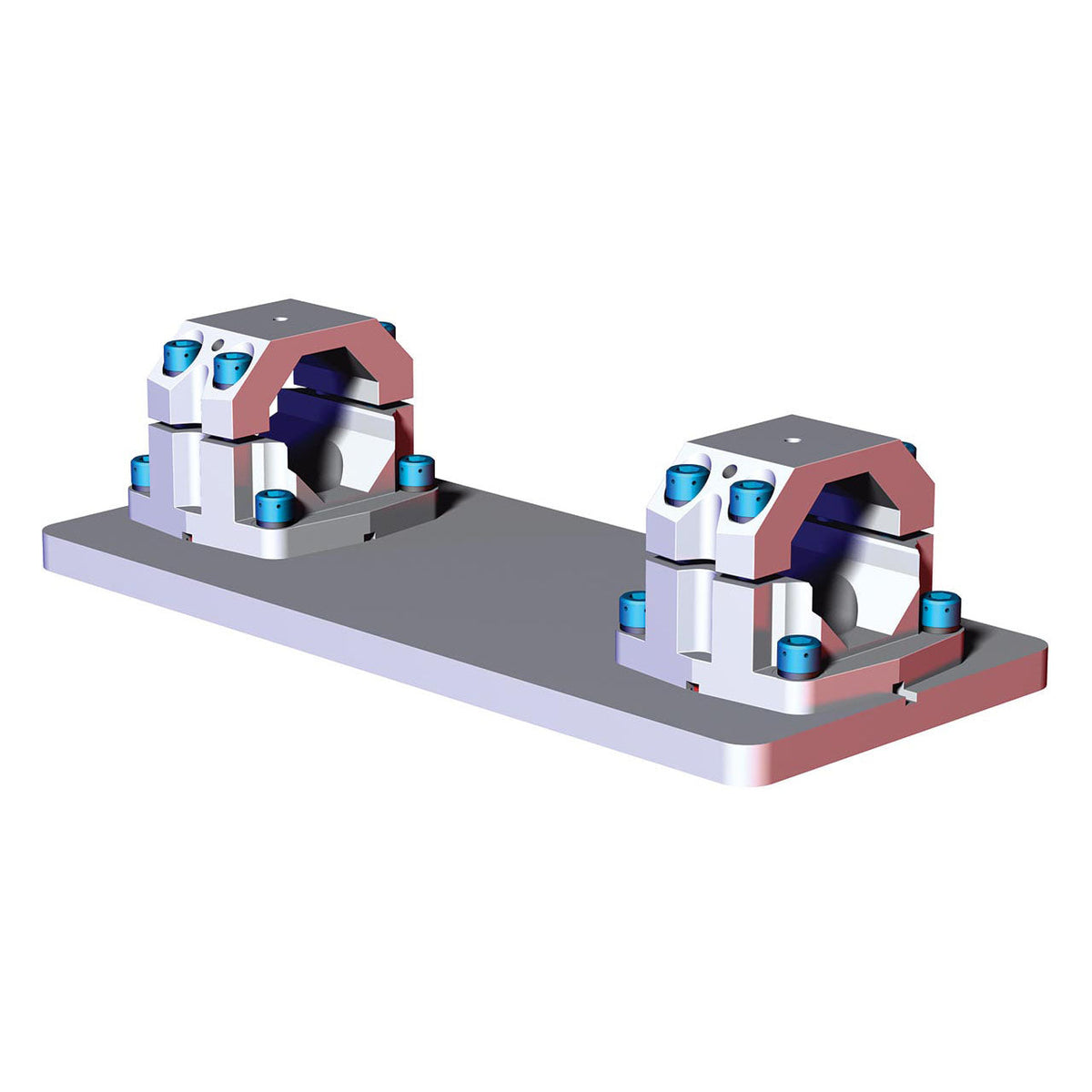

DESTACO BM1-60-SE-R03 60MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R03 - W/ INSULATION

SKU: DE-STA-CO-BM1-60-SE-R03
MPN: BM1-60-SE-R03

$1,289.85
Unit price per
Save $149.11

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Discover the power and convenience of DESTACO's BM1-60-SE-R03 60MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R03 - W/ INSULATION. Designed for high-performance automation, workholding, and containment solutions, this mid mount assembly is the perfect addition to your industrial setup. With a sturdy aluminum build and a maximum static product load of 675 Nm (500 ft lb), it offers exceptional strength and durability. Plus, its 60mm tube diameter and 406.4mm length provide ample space for mounting and positioning, while the 160mm bolt circle and insulation tube ensure a secure and insulated fit. Upgrade your operations with DESTACO today!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO BM1-60-SE-R03 60MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R03 - W/ INSULATION

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Mounts a single 60mm extrusion boom inline with the two mounts.
Robot Interface Bolt Pattern R03: 160mm Bolt Circle, Includes Insulation

Tube Diameter (mm)	60
Tube Diameter (in)	2.36
Length (mm)	406.4
Length (in)	16.000
Width (mm)	177.8
Width (in)	7.000
Material	Aluminum
Robot Interface Bolt Pattern	R03: 160mm Bolt Circle, Includes Insulation
Robot Interface Thru Holes (qty/size) (mm)	(8) 14
Robot Interface Dowel Holes (qty/size) (mm)	(4) 13
Maximum Static Product Load (Nm)	675
Maximum Static Product Load (ft lb)	500
Product Type	Mid Mount
Tube Size	60B
Weight (kg)	5.20
Weight (lb)	11.50
Product Series Description	Automation Adapter
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
