Brand: DESTACO

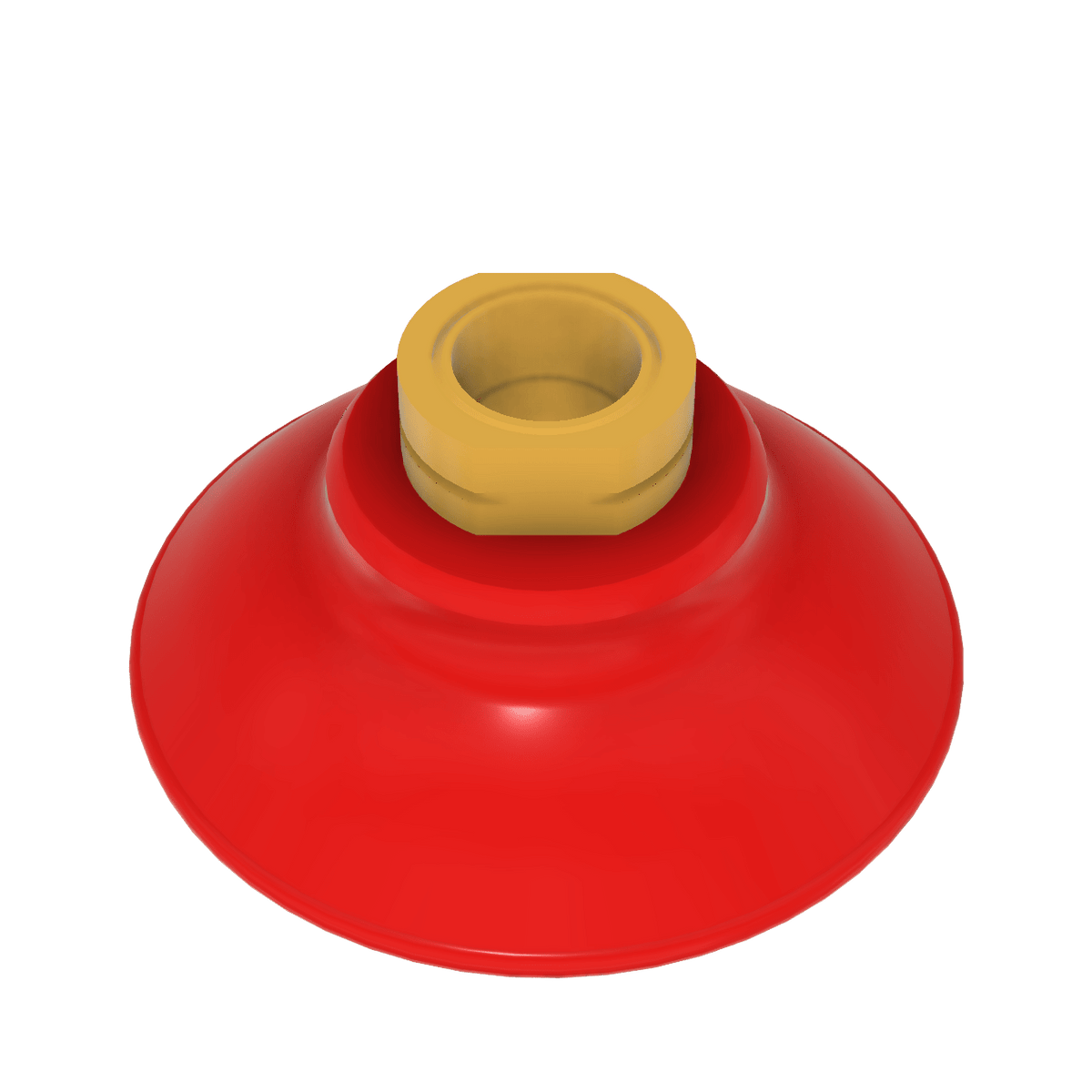

DESTACO CPI-30FF-B-45 CUP FF 3in. B-MT RED
SKU: DE-STA-CO-CPI-30FF-B-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-30FF-B-45 CUP FF 3in. B-MT RED Flatfoot vacuum cups are ideal for use on moderately flat to medium contour, dry surfaces. They are part of the Catalog for High-Performance Automation, Workholding, & Containment Solutions by Destaco and boast impressive holding capacities, both horizontally and vertically. With a weight of only 57.0g (2.0oz) and a diameter of 76.2mm (3.000in), these vacuum cups are lightweight and versatile. Made of durable nitrile material with a 45 durometer (in a bold red color), they are sure to provide a strong grip. Plus, they come with a 3/8" NPT mount option. Get your hands on these DESTACO vacuum cups today and elevate your automation game with ease!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-30FF-B-45 CUP FF 3in. B-MT RED
Flatfoot vacuum cups are best used on moderately flat to medium contour, dry surfaces Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
Holding Capacity - Horizontal Dry (kg) | 0.0 |
Holding Capacity - Horizontal Dry (lbf) | 30.0 |
Holding Capacity - Horizontal Wet (kg) | 0.0 |
Holding Capacity - Horizontal Wet (lbf) | 13.0 |
Holding Capacity - Vertical Lift (kg) | 27 |
Holding Capacity - Vertical Lift (lbf) | 60 |
Weight (g) | 57.0 |
Weight (oz) | 2.0 |
Diameter (mm) | 76.2 |
Diameter (in) | 3.000 |
Material | Nitrile |
Durometer | 45 (Red) |
Mount | 3/8" NPT |
Temperature Range | 15-59 Sec: -20‚° to 250‚°F (-29‚° to 121‚°C) 1-5 Min: 15‚° to 180‚°C (-9‚° to 82‚°C) |
Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
Shape | Round |
Product Type | Flatfoot |
Cup Size | 76 mm |
Cup Size | 3.00 in |
Product Series Description | Nitrile Rubber |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | vacuum cups |
