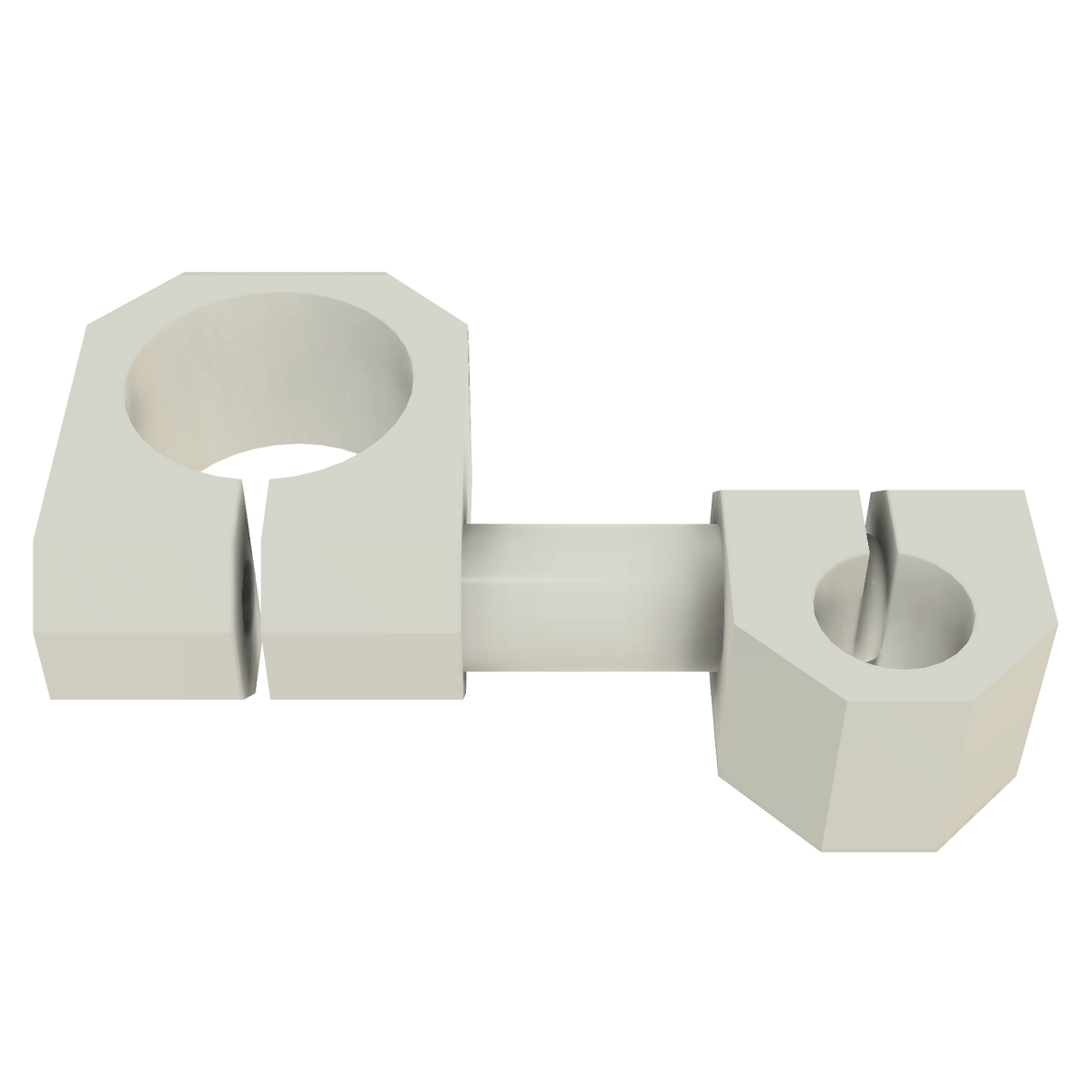

DESTACO CPI-400-30B50-MSA MICROTOOLING SWIVEL ARM - 30BB TP 1/2

Brand: DESTACO

DESTACO CPI-400-30B50-MSA MICROTOOLING SWIVEL ARM - 30BB TP 1/2"

SKU: DE-STA-CO-CPI-400-30B50-MSA
MPN: CPI-400-30B50-MSA

  • Regular price $273.37 Sale price $245.05
    Unit price per
  • Save $28.32
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO CPI-400-30B50-MSA Microtooling Swivel Arm is a versatile robotic end effector designed for high-performance automation. It mounts a 0.50" apple core to a BodyBuilder 30mm extrusion boom, offering 360° of rotational adjustments across three axes. This one-bolt design allows for easy assembly and repositioning of accessories such as venturis, bumpers, round locators, and proximity switches. The arm features a tube diameter of 30 mm (1.18 in) and a length of 106.2 mm (4.18 in). Constructed from durable aluminum, it supports a maximum static clamp load of 102 Nm (75 ft-lb).

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO CPI-400-30B50-MSA MICROTOOLING SWIVEL ARM - 30BB TP 1/2"

BodyBuilder Swivel Arms - Robotic End Effectors

Use the swivel arm to mount venturi, bumpers, round locators, and proximity switches. One bolt design for easy assembly and adjustment, allowing accessories to be repositioned easily.

  • Mounts 0.50" apple core to BodyBuilder 30mm extrusion boom
  • One bolt design for easy assembly and adjustment, allowing accessories to be repositioned easily
  • Provides 360° of adjustments in (3) axes
  • Used to mount venturi, bumpers, round locators, and proximity switches
Apple Core (mm) 12.7
Apple Core (in) 0.500
Tube Diameter (mm) 30
Tube Diameter (in) 1.18
Length (mm) 106.2
Length (in) 4.180
Material Aluminum
Maximum Static Clamp Load (Nm) 102
Maximum Static Clamp Load (ft lb) 75
Product Type Swivel Arm
Tube Size 30B
Weight (kg) 0.12
Weight (lb) 0.30
Product Series Description Swivel Arm
Product Function Robotic Tooling
Product Family End Effectors
Product Group bodybuilder end effector
Apple Core Size 12.7
