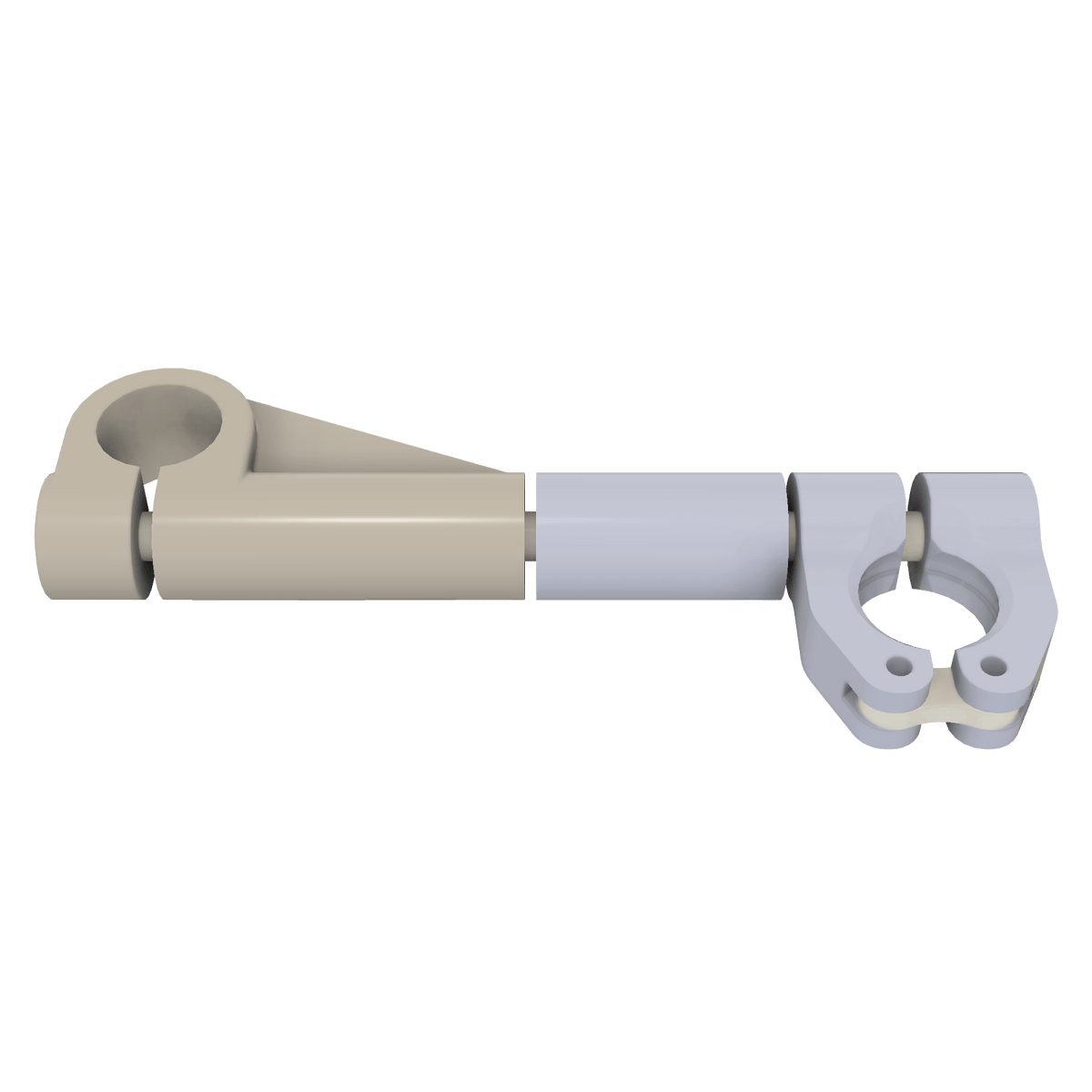

DESTACO CPI-600-1-SA-B112 6in. BALL END SWIVEL 1in. SERIES

Brand: DESTACO

DESTACO CPI-600-1-SA-B112 6in. BALL END SWIVEL 1in. SERIES

SKU: DE-STA-CO-CPI-600-1-SA-B112
MPN: CPI-600-1-SA-B112

  • Regular price $143.89 Sale price $128.99
    Unit price per
  • Save $14.90
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO CPI-600-1-SA-B112 Ball End Swivel Arm is a robust solution for mounting 1.125" swivel ball accessories to a 1.00" round tube. It offers 360° rotational adjustments across three axes, making it suitable for applications like venturi, bumpers, round locators, and proximity switches. With a length of 155.3 mm (6.120 inches), this aluminum arm has a silver finish and can withstand a maximum static clamp load of 271 Nm (200 ft-lb). Ideal for precise positioning in automation and workholding setups.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO CPI-600-1-SA-B112 6in. BALL END SWIVEL 1in. SERIES

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

  • Mounts 1.125" swivel ball accessories to 1.00" round tube
  • Provides 360° of rotational adjustments along (3) axes
  • Used to mount venturi, bumpers, round locators, and proximity switches
Tube Diameter (mm) 25.4
Tube Diameter (in) 1.00
Length (mm) 155.3
Length (in) 6.120
Material Aluminum
Finish Silver
Maximum Static Clamp Load (Nm) 271
Maximum Static Clamp Load (ft lb) 200
Product Type Swivel Arm
Tube Size 1.00 in
Weight (kg) 0.43
Weight (lb) 0.94
Product Series Description Swivel Arm
Product Function Robotic Tooling
Product Family End Effectors
Product Group round tooling
