Brand: DESTACO

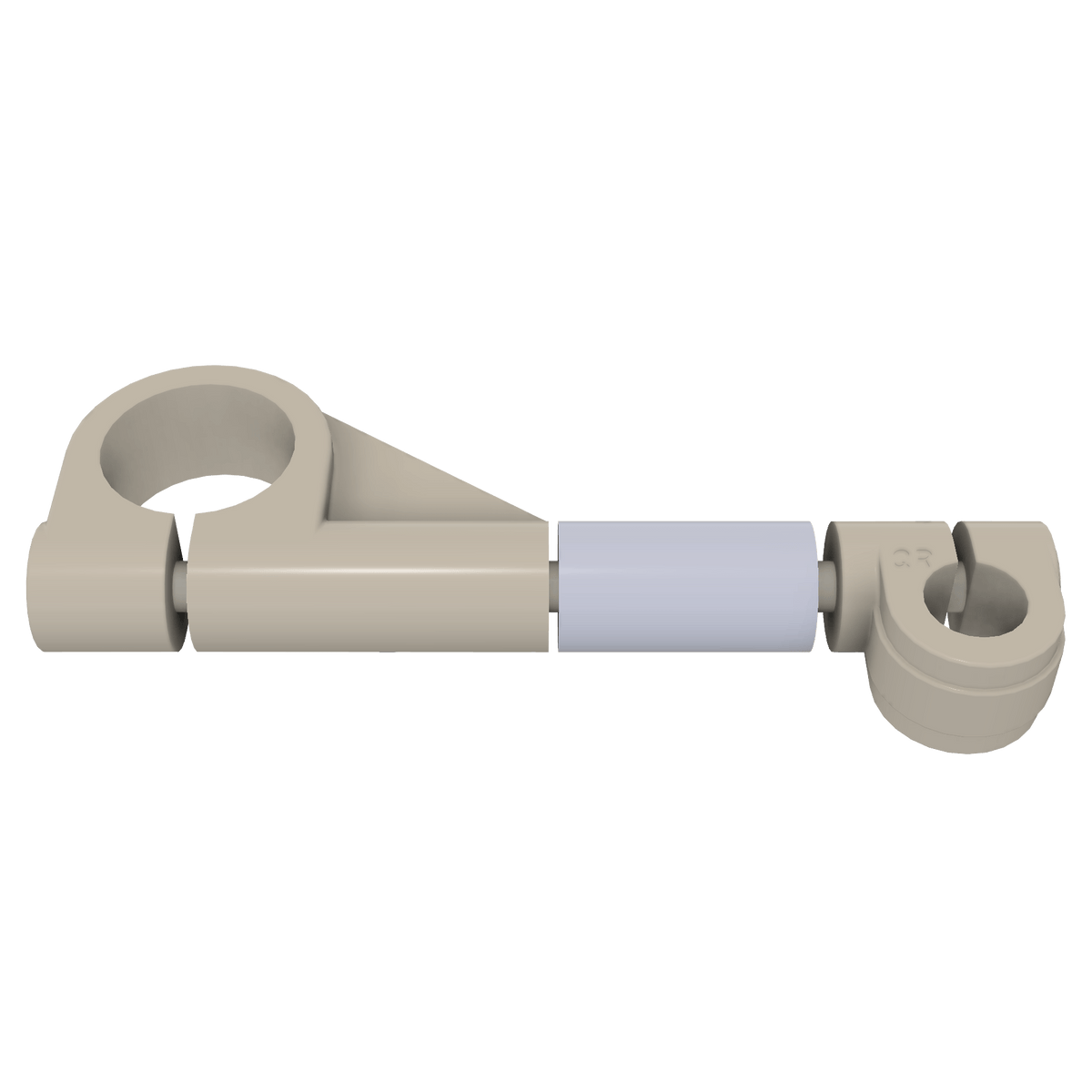

DESTACO CPI-600-15-SA SWIVEL ARM 1.5in. DIA X 6in. L
SKU: DE-STA-CO-CPI-600-15-SA
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-600-15-SA Swivel Arm is a versatile tool for mounting 0.75" apple core accessories to a 1.50" round tube. It offers 360° rotational adjustments across three axes, ideal for mounting venturi, bumpers, round locators, and proximity switches. The arm is 151.8 mm (5.970 inches) long, made of durable aluminum with a silver finish. It provides a maximum static clamp load of 271 Nm (200 ft-lb), ensuring reliable performance in automation and workholding applications.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-600-15-SA SWIVEL ARM 1.5in. DIA X 6in. L
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 0.75"apple core accessories to 1.50" round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
Apple Core (mm) | 19.0 |
Apple Core (in) | 0.750 |
Tube Diameter (mm) | 38.1 |
Tube Diameter (in) | 1.50 |
Length (mm) | 151.8 |
Length (in) | 5.970 |
Material | Aluminum |
Finish | Silver |
Maximum Static Clamp Load (Nm) | 271 |
Maximum Static Clamp Load (ft lb) | 200 |
Product Type | Swivel Arm |
Tube Size | 1.50 in |
Weight (kg) | 0.44 |
Weight (lb) | 0.97 |
Product Series Description | Swivel Arm |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | round tooling |
Apple Core Size | 19 |
