Brand: DESTACO

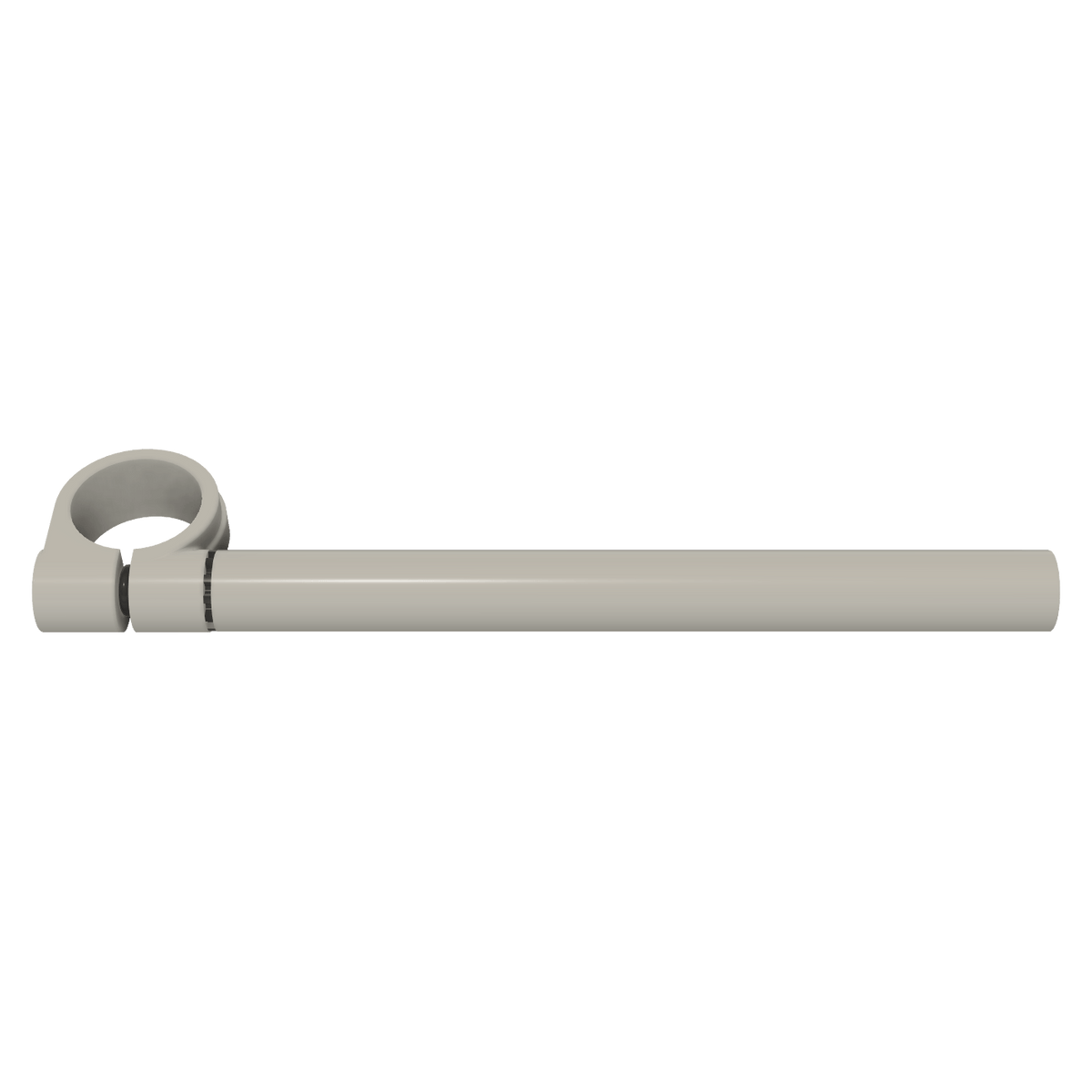

DESTACO CPI-ES10-150-11 SINGLE END 1.5in. DIA BORE 11in. L
SKU: DE-STA-CO-CPI-ES10-150-11
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-ES10-150-11 Single End Extension is designed for high-performance automation and tooling solutions. It supports mounting of a 1.00" rod end to a 1.50" (38.1 mm) round tube, offering 360° of rotational adjustment along a single axis. Measuring 279.4 mm (11.000 in) in length, this extension is constructed from aluminum with a silver finish, ensuring durability and resistance to corrosion. Its maximum static clamp load capacity of 271 Nm (200 ft-lb) makes it suitable for demanding applications that require precision and flexibility. Ideal for extending mounting options in workholding and containment setups.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-ES10-150-11 SINGLE END 1.5in. DIA BORE 11in. L
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- 1.00" rod end extension mounts to 1.50" round tube for extended mounting options
- Provides 360° of rotational adjustments along a single axis
Tube Diameter (mm) | 38.1 |
Tube Diameter (in) | 1.50 |
Length (mm) | 279.4 |
Length (in) | 11.000 |
Material | Aluminum |
Finish | Silver |
Maximum Static Clamp Load (Nm) | 271 |
Maximum Static Clamp Load (ft lb) | 200 |
Product Type | Single End Extensions |
Tube Size | 1.50 in |
Weight (kg) | 0.46 |
Weight (lb) | 1.01 |
Product Series Description | Swivel Arm |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | round tooling |
