Brand: DESTACO

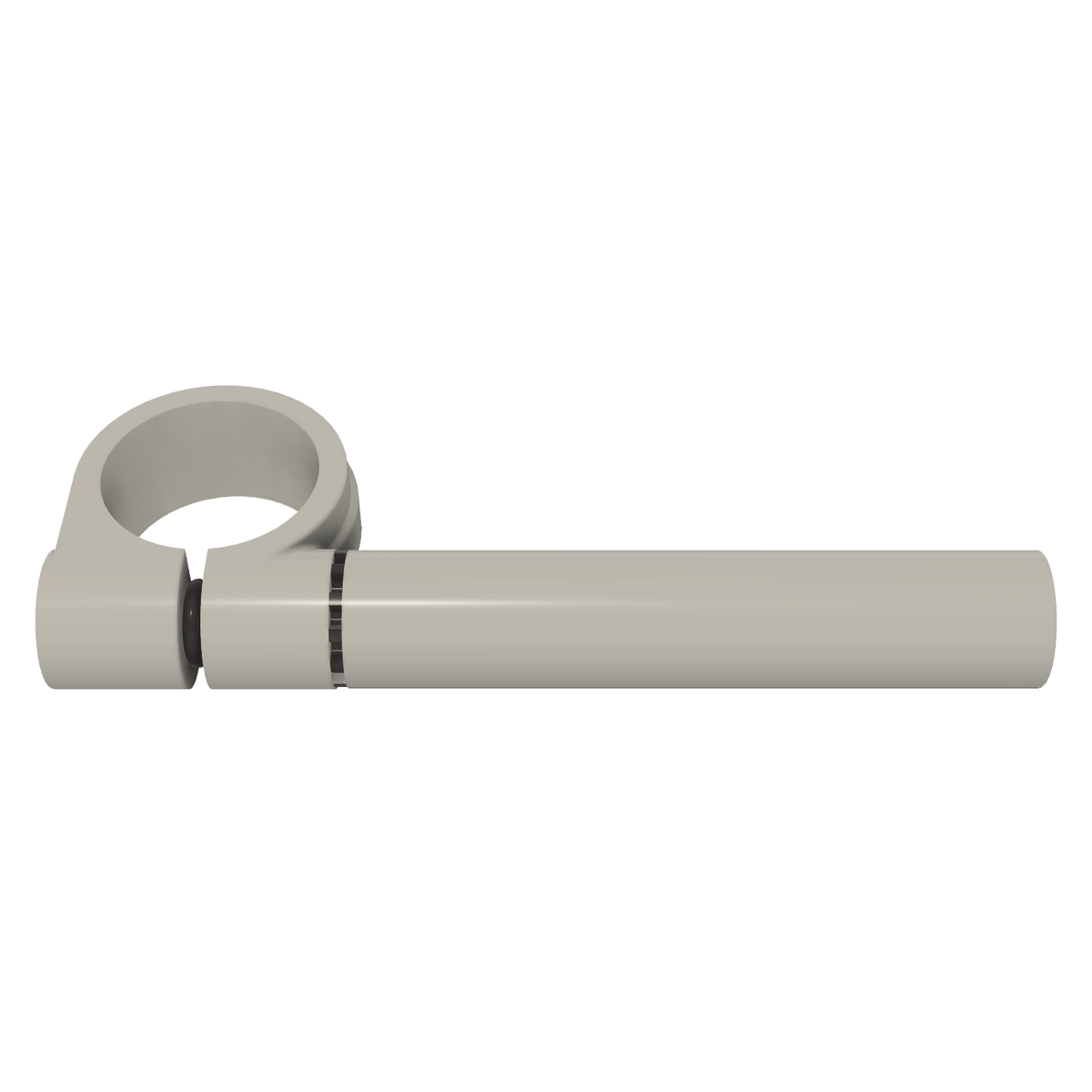

DESTACO CPI-ES25-40-150 SINGLE END EXTENSION ARM ASSEMBLY
SKU: DE-STA-CO-CPI-ES25-40-150
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-ES25-40-150 Single End Extension Arm Assembly is designed for swivel arm and round tooling applications in industrial settings. It connects 25 mm rod ends to 40 mm (1.57 in) round tubes, offering extended mounting options. This extension provides 360° rotational adjustments along a single axis for enhanced versatility. Measuring 150 mm (5.910 in) in length, it is crafted from high-quality aluminum with a durable blue finish. Supporting a maximum static clamp load of 271 Nm (200 ft-lb), it is an ideal solution for demanding workholding and automation requirements.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-ES25-40-150 SINGLE END EXTENSION ARM ASSEMBLY
Swivel Arm, Single End Extensions for Round Tooling
- 25 mm rod end extension mounts to 40 mm round tube for extended mounting options
- Provides 360° of rotational adjustments along a single axis
Tube Diameter (mm) | 40 |
Tube Diameter (in) | 1.57 |
Length (mm) | 150.0 |
Length (in) | 5.910 |
Material | Aluminum |
Finish | Blue |
Maximum Static Clamp Load (Nm) | 271 |
Maximum Static Clamp Load (ft lb) | 200 |
Product Type | Single End Extensions |
Tube Size | 40 mm |
Weight (kg) | 0.29 |
Weight (lb) | 0.64 |
Product Series Description | Swivel Arm |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | round tooling |
