Brand: DESTACO

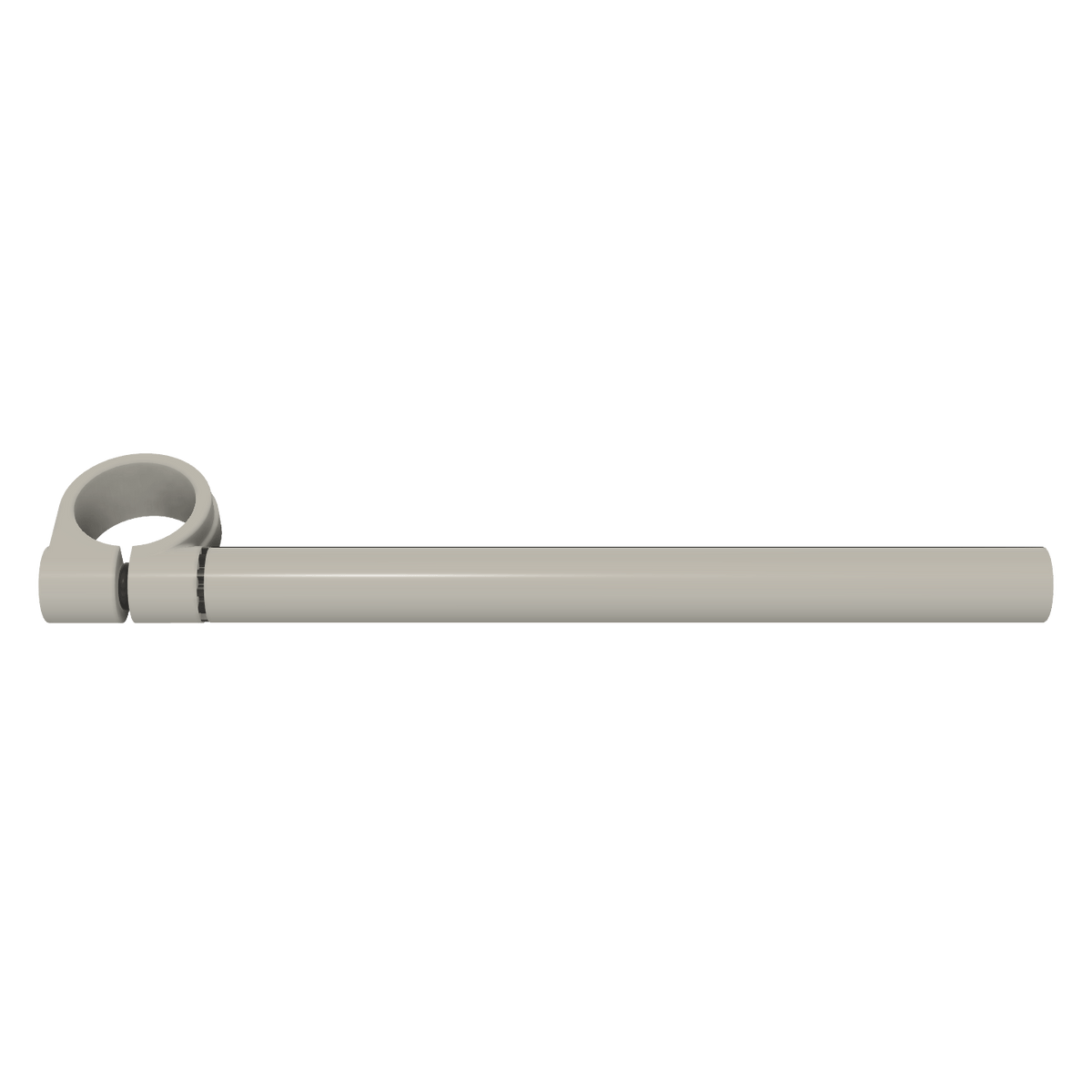

DESTACO CPI-ES25-40-300 SINGLE END EXTENSION ARM ASSEMBLY
SKU: DE-STA-CO-CPI-ES25-40-300
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-ES25-40-300 Single End Extension Arm Assembly is an adaptable solution for industrial automation and tooling setups. This extension allows 25 mm rod ends to connect to 40 mm (1.57 in) round tubes, enhancing mounting options. Featuring 360° rotational adjustability on a single axis, it provides excellent flexibility in positioning. With a length of 300 mm (11.810 in), it is constructed from high-quality aluminum and finished in a durable blue coating. It is capable of withstanding up to 271 Nm (200 ft-lb) of static clamp load, making it a reliable choice for demanding applications.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-ES25-40-300 SINGLE END EXTENSION ARM ASSEMBLY
Swivel Arm, Single End Extensions for Round Tooling
- 25 mm rod end extension mounts to 40 mm round tube for extended mounting options
- Provides 360° of rotational adjustments along a single axis
Tube Diameter (mm) | 40 |
Tube Diameter (in) | 1.57 |
Length (mm) | 300.0 |
Length (in) | 11.810 |
Material | Aluminum |
Finish | Blue |
Maximum Static Clamp Load (Nm) | 271 |
Maximum Static Clamp Load (ft lb) | 200 |
Product Type | Single End Extensions |
Tube Size | 40 mm |
Weight (kg) | 0.47 |
Weight (lb) | 1.04 |
Product Series Description | Swivel Arm |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | round tooling |
