Brand: DESTACO

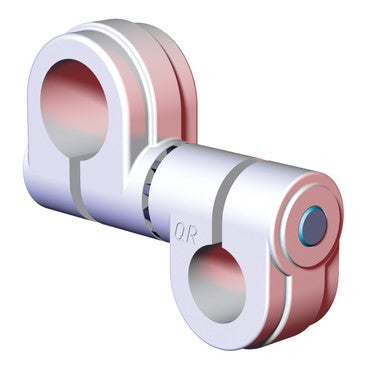

DESTACO CPI-SA10-100-075-02 SWIVEL EXT 1in. X .75in.DIA BORE 2in.L
SKU: DE-STA-CO-CPI-SA10-100-075-02
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-SA10-100-075-02 Swivel Extension is a versatile component for high-performance automation, workholding, and containment solutions. Designed to mount 0.75" apple core accessories to a 1.00" round tube, it offers 360° rotational adjustments across three axes, providing flexibility for a variety of setups. With a length of 2.38 inches (60.4 mm) and a robust aluminum construction with a silver finish, this swivel arm is durable and lightweight. It is commonly used to mount venturi, bumpers, round locators, and proximity switches. Capable of handling a maximum static clamp load of 271 Nm (200 ft-lbs), this swivel arm is a reliable solution for demanding industrial applications.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-SA10-100-075-02 SWIVEL EXT 1in. X .75in. DIA BORE 2in.L
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Single bolt swivel arm
- Mounts 0.75" apple core accessories to 1.00" round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
Apple Core (mm) | 19.0 |
Apple Core (in) | 0.750 |
Tube Diameter (mm) | 25.4 |
Tube Diameter (in) | 1.00 |
Length (mm) | 60.4 |
Length (in) | 2.380 |
Material | Aluminum |
Finish | Silver |
Maximum Static Clamp Load (Nm) | 271 |
Maximum Static Clamp Load (ft lb) | 200 |
Product Type | Swivel Arm |
Tube Size | 1.00 in |
Weight (kg) | 0.21 |
Weight (lb) | 0.46 |
Product Series Description | Swivel Arm |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | round tooling |
Apple Core Size | 19 |
