Brand: DESTACO
DESTACO CPI-TCA-250-150 T-CLAMP - 2.5in ROUND TO 1.5in ROUND
SKU: DE-STA-CO-CPI-TCA-250-150
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the power of DESTACO CPI-TCA-250-150 T-CLAMP - the ultimate solution for high-performance automation, workholding, and containment needs. This T-Clamp seamlessly connects 2.50" and 1.50" tubes, with a maximum static clamp load of 271.0 Nm(200 ft lb) and 677.0 Nm (500 ft lb). Made from durable aluminum material, it offers unbeatable strength and reliability. Upgrade your productivity with the DESTACO T-Clamp today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description

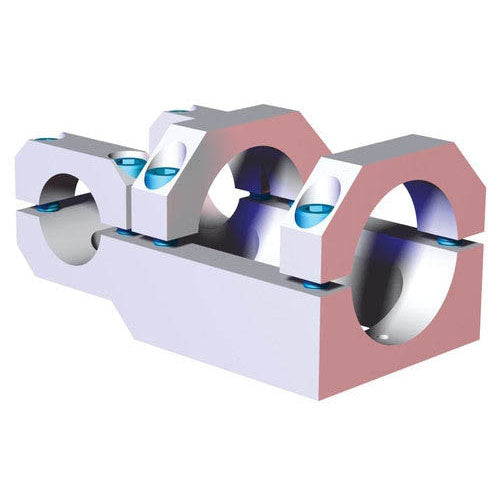

DESTACO CPI-TCA-250-150 T-CLAMP - 2.5in ROUND TO 1.5in ROUND
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- T-Clamp for 2.50" tube to 1.50" tube
Tube Diameter (mm) | 63.5, 38.1 |
Tube Diameter (in) | 2.50, 1.50 |
Material | Aluminum |
Max Static Clamp Load 1 (Nm) | 271.0 |
Max Static Clamp Load 1 (ft lb) | 200 |
Max Static Clamp Load 2 (Nm) | 677.0 |
Max Static Clamp Load 2 (ft lb) | 500 |
Product Type | T-Clamp |
Tube Size | 2.50 in / 1.50 in |
Weight (kg) | 1.25 |
Weight (lb) | 2.76 |
Product Series Description | Transition Brackets and Block |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | round tooling |
Tube Combinations (mm) | 63.5 / 38.1 |
Tube Combinations (in) | 2.50 / 1.50 |
