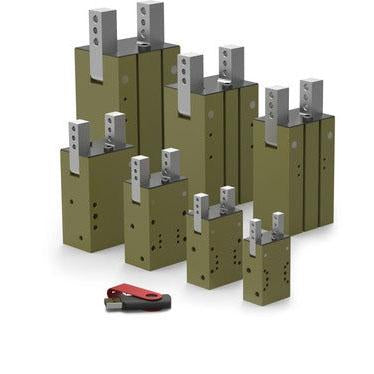

DESTACO CT-50M 2 JAW ANGULAR 180 DEGREE GRIPPER

Brand: DESTACO

DESTACO CT-50M 2 JAW ANGULAR 180 DEGREE GRIPPER

SKU: DE-STA-CO-CT-50M
MPN: CT-50M

  • $2,840.97
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

From adjustable stops to magneto resistive or inductive sensors, the DESTACO CT-50M 2 JAW ANGULAR 180 DEGREE GRIPPER offers a range of accessories that make it versatile for various applications. With its full 180° jaw opening, this gripper allows for direct feeding, eliminating the need for any additional movements by the robot or actuator. Its compact design also makes it ideal for use in confined spaces. Boasting a powerful Metric Grip Force of 651 N (146 lbsf) and an opening angle of 180 degrees, this gripper is the perfect choice for your gripping needs.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO CT-50M 2 JAW ANGULAR 180 DEGREE GRIPPER

Several accessories (adjustable stop, magneto resistive or inductive sensors) allow this gripper to be used in a number of applications.

  • The full jaw opening (180°) means that the part can be direct fed, avoiding any release movement by the robot or by the actuator.
  • This gripper is designed for use in confined spaces.
Product Metric
Grip Force (N) 651
Grip Force (lbsf) 146
Opening Angle (deg) 180
Cylinder Bore (mm) 50
Cylinder Bore (in) 1.97
Opening Per Jaw (degrees) 90
Pressure Range (bar) 3-7
Pressure Range (psi) 40-100
Displacement (cm³) 92.00
Displacement (in³) 5.614
Temp Range Standard -35° to 80°C (-30° to 180°F)
Temp Range Viton -30° to 150°C (-20° to 300°F)
Actuation Time (Open) (Sec) 0.46
Actuation Time (close) (Sec) 0.46
Accuracy (±mm) 0.090
Accuracy (±in) 0.004
Repeatability (±mm) 0.050
Repeatability (±in) 0.002
Maximum Finger Length (mm) 216
Maximum Finger Length (in) 8.50
Protection Class IP43
Product Type 2 Jaw Angular
Special Feature 180° Opening Angle
Spring Assist No
Weight (kg) 1.82
Weight (lb) 4.01
Product Series Description 2-Jaw Angular Gripper
Number of Jaws 2
Product Function Gripping
Product Family Grippers
Product Group Angular Grippers
Brand Robohand
Distributor Group Robohand Gripping Solutions
