Brand: DESTACO

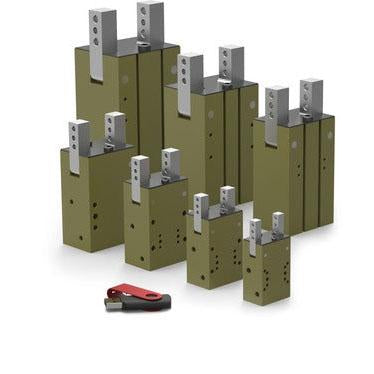

DESTACO DCT-25M 2 JAW ANGULAR 180 DEGREE GRIPPER
SKU: DE-STA-CO-DCT-25M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO DCT-25M 2 JAW ANGULAR 180 DEGREE GRIPPER comes with useful accessories such as adjustable stop, magneto resistive or inductive sensors for versatile applications. Its full jaw opening of 180° allows for direct feeding, eliminating the need for any release movement by the robot or actuator. With both DIRECTCONNECT and standard mounting options, this gripper is ideal for use in compact workspaces. Experience a strong grip force of 157 N (35 lbsf) and an impressive opening angle of 180 degrees, thanks to its 25mm (0.98 in) cylinder bore.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DCT-25M 2 JAW ANGULAR 180 DEGREE GRIPPER
Several accessories (adjustable stop, magneto resistive or inductive sensors) allow this gripper to be used in a number of applications.
- The full jaw opening (180°) means that the part can be direct fed, avoiding any release movement by the robot or by the actuator.
- DIRECTCONNECT mounting on back of body (sizes 12-25). Standard mounting on top.
- This gripper is designed for use in confined spaces.
Product | Metric |
Grip Force (N) | 157 |
Grip Force (lbsf) | 35 |
Opening Angle (deg) | 180 |
Cylinder Bore (mm) | 25 |
Cylinder Bore (in) | 0.98 |
Opening Per Jaw (degrees) | 90 |
Pressure Range (bar) | 3-7 |
Pressure Range (psi) | 40-100 |
Displacement (cm³) | 14.90 |
Displacement (in³) | 0.909 |
Temp Range Standard | -35° to 80°C (-30° to 180°F) |
Temp Range Viton | -30° to 150°C (-20° to 300°F) |
Actuation Time (Open) (Sec) | 0.21 |
Actuation Time (close) (Sec) | 0.21 |
Accuracy (±mm) | 0.080 |
Accuracy (±in) | 0.003 |
Repeatability (±mm) | 0.050 |
Repeatability (±in) | 0.002 |
Maximum Finger Length (mm) | 108 |
Maximum Finger Length (in) | 4.25 |
Protection Class | IP43 |
Product Type | 2 Jaw Angular |
Direct Connect | Yes |
Special Feature | 180° Opening Angle |
Spring Assist | No |
Weight (kg) | 0.49 |
Weight (lb) | 1.08 |
Product Series Description | 2-Jaw Angular Gripper |
Number of Jaws | 2 |
Product Function | Gripping |
Product Family | Grippers |
Product Group | Angular Grippers |
Brand | Robohand |
Distributor Group | Robohand Gripping Solutions |
