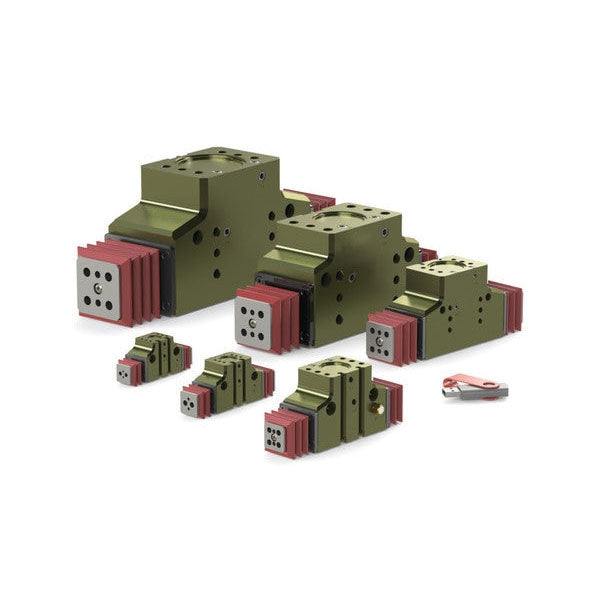

DESTACO DPDL-056M-038 2 JAW MODULAR PARALLEL GRIPPER

Brand: DESTACO

DESTACO DPDL-056M-038 2 JAW MODULAR PARALLEL GRIPPER

SKU: DE-STA-CO-DPDL-056M-038
MPN: DPDL-056M-038

  • $1,175.36
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Get ready to upgrade your gripping game with the versatile DESTACO DPDL-056M-038 2 jaw modular parallel gripper. This powerful gripper offers an array of jaw styles, mounting and air port locations, and even comes in 3 different strokes. Plus, you can choose from corrosion resistant hardware or clean room options. With highly configurable features and a strong grip force of 98 N (22 lbsf), this gripper is the perfect tool for any task. Don't miss out on the DIRECTCONNECT mounting and extended strokes for ultimate precision and control. Grab yours now and experience the difference!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO DPDL-056M-038 2 JAW MODULAR PARALLEL GRIPPER

DIRECTCONNECT long stroke 2-jaw parallel gripper features multiple jaw styles, mounting and air port locations and more. Each gripper is offered in 3 different strokes. Corrosion resistant hardware or clean room options are available.

  • Features DIRECTCONNECT Mounting
  • Highly configurable gripper
  • Multiple, Extended Strokes
Product Metric
Grip Force (N) 98
Grip Force (lbsf) 22
Stroke (mm) 9.5
Stroke (in) 0.380
Cylinder Bore (mm) 14.3
Cylinder Bore (in) 0.563
Pressure Range (bar) 1.5-7
Pressure Range (psi) 20-100
Temp Range Standard -35° to 80°C (-30° to 180°F)
Temp Range Viton -30° to 150°C (-20° to 300°F)
Actuation (Open/Closed) (Sec) 0
Accuracy (±mm) 0.050
Accuracy (±in) 0.002
Repeatability (±mm) 0.030
Repeatability (±in) 0.001
Maximum Finger Length (mm) 76
Maximum Finger Length (in) 3.00
Protection Class IP66
Product Type 2 Jaw Parallel
Direct Connect Yes
Special Feature Boot Seal
Jaw Operation Synchronous
Spring Assist No
Weight (kg) 0.14
Weight (lb) 0.32
Product Series Description 2-Jaw Parallel Gripper
Number of Jaws 2
Product Function Gripping
Product Family Grippers
Product Group Parallel Grippers
Brand Robohand
Distributor Group Robohand Gripping Solutions
