Brand: DESTACO

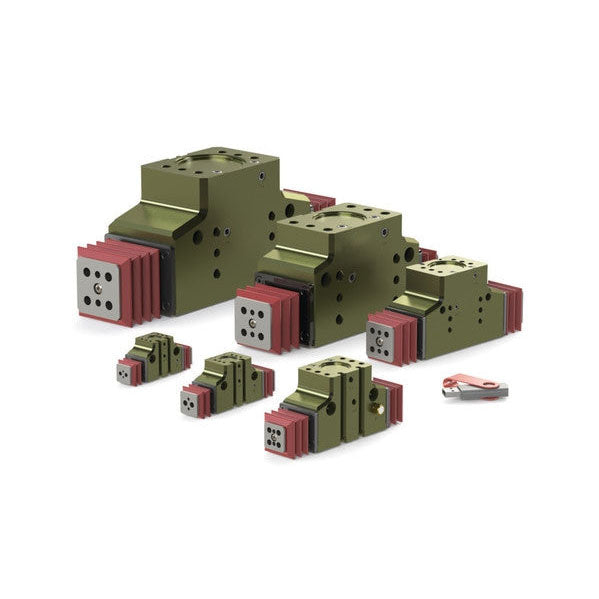

DESTACO DPDL-125M-050 2 JAW MODULAR PARALLEL GRIPPER
SKU: DE-STA-CO-DPDL-125M-050
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO DPDL-125M-050 2 JAW MODULAR PARALLEL GRIPPER offers a highly configurable and versatile solution for your gripping needs. With multiple jaw styles, mounting and air port locations, and various stroke options, this gripper is sure to meet your specific requirements. You can even choose from corrosion resistant hardware or clean room options for added convenience. Choose the perfect gripper for your needs and experience the strong grip force of 445N (100lbsf) with a stroke range of 12.7mm (0.500in) and a cylinder bore of 31.8mm (1.25in). Don't miss out on the value and functionality of the DESTACO DPDL-125M-050.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPDL-125M-050 2 JAW MODULAR PARALLEL GRIPPER
DIRECTCONNECT long stroke 2-jaw parallel gripper features multiple jaw styles, mounting and air port locations and more. Each gripper is offered in 3 different strokes. Corrosion resistant hardware or clean room options are available.
- Features DIRECTCONNECT Mounting
- Highly configurable gripper
- Multiple, Extended Strokes
Product | Metric |
Grip Force (N) | 445 |
Grip Force (lbsf) | 100 |
Stroke (mm) | 12.7 |
Stroke (in) | 0.500 |
Cylinder Bore (mm) | 31.8 |
Cylinder Bore (in) | 1.25 |
Pressure Range (bar) | 1.5-7 |
Pressure Range (psi) | 20-100 |
Temp Range Standard | -35° to 80°C (-30° to 180°F) |
Temp Range Viton | -30° to 150°C (-20° to 300°F) |
Actuation (Open/Closed) (Sec) | 0 |
Accuracy (±mm) | 0.080 |
Accuracy (±in) | 0.003 |
Repeatability (±mm) | 0.030 |
Repeatability (±in) | 0.001 |
Maximum Finger Length (mm) | 114 |
Maximum Finger Length (in) | 4.50 |
Protection Class | IP66 |
Product Type | 2 Jaw Parallel |
Direct Connect | Yes |
Special Feature | Boot Seal |
Jaw Operation | Synchronous |
Spring Assist | No |
Weight (kg) | 0.90 |
Weight (lb) | 1.99 |
Product Series Description | 2-Jaw Parallel Gripper |
Number of Jaws | 2 |
Product Function | Gripping |
Product Family | Grippers |
Product Group | Parallel Grippers |
Brand | Robohand |
Distributor Group | Robohand Gripping Solutions |
