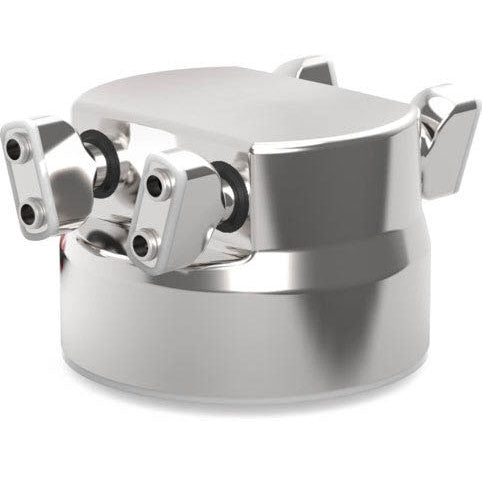

DESTACO FUA-63M FOOD GRIPPER ANGULAR 70 DEGREE GRIPPER

Brand: DESTACO

DESTACO FUA-63M FOOD GRIPPER ANGULAR 70 DEGREE GRIPPER

SKU: DE-STA-CO-FUA-63M
MPN: FUA-63M

  • $3,663.84
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO FUA-63M FOOD GRIPPER ANGULAR 70 DEGREE GRIPPER is specifically designed to meet the high standards of the food industry (EN 1672-2). Its corrosion-resistant, non-toxic, and non-reactive components are perfect for direct product contact and can withstand daily cleanings with high pressure and temperature. With a sealed IP69K design and gasket protection for metal-to-metal contact, this gripper ensures a leak-proof assembly against bacteria. Its impressive 70 degree opening angle and 63mm cylinder bore (2.48 inches) provides efficient and powerful grip. The jaws can withstand up to 32Nm of torque at 6 bar with the spring, and the pressure range is between 2-7 bar. Whether it's hot or cold, this gripper can handle it with a standard temperature range of -15° to 80°C (5 to 180°F).

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO FUA-63M FOOD GRIPPER ANGULAR 70 DEGREE GRIPPER

Designed for direct product contact in the food zone, according to the food industry standard (EN 1672-2)

  • Corrosion resistant, non-toxic, non-contaminating, non porous, non-absorbent and non-reactive
  • Sealed motion components (IP69K design) for high-pressure and high-temperature daily cleanings
  • Any metal/metal contact protected by gasket to obtain a leak-proof assembly against bacteria
Product Metric
Opening Angle (deg) 70
Cylinder Bore (mm) 63
Cylinder Bore (in) 2.48
Torque, Jaws (Nm (6 bar w/spring)) 32
Pressure Range (bar) 2-7
Temp Range Standard -15° to 80°C (5 to 180°F)
Product Type 2 Jaw Angular
Special Feature Food Grade
Spring Assist Optional
Weight (kg) 1.70
Weight (lb) 3.75
Product Series Description 2-Jaw Angular Gripper
Number of Jaws 2
Product Function Gripping
Product Family Grippers
Product Group Angular Grippers
Brand Robohand
Distributor Group Robohand Gripping Solutions
