Brand: DESTACO

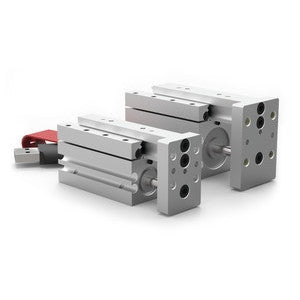

DESTACO MPS-1M-1 MPS MINIATURE SLIDE

SKU: DE-STA-CO-MPS-1M-1
MPN: MPS-1M-1

$592.03
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

DESTACO MPS-1M-1 MPS MINIATURE SLIDE
Miniature Dual-V Roller Bearing Slide - MPS Series.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO MPS-1M-1 MPS MINIATURE SLIDE

Built-in air cylinder
Preloaded Dual "V"DESTACO MPS-1M-1 MPS MINIATURE SLIDE" roller bearings eliminate side play for excellent part position repeatability"
Extremely small size

Imperial or Metric Product	Metric Version
Force (kg)	67
Force (lb)	15
Stroke (mm)	13.0
Stroke (in)	0.500
Payload (kg)	0.1
Payload (lb)	0.3
Cylinder Bore (mm)	11.1
Cylinder Bore (in)	.438
Thrust Force (N)	67
Thrust Force (lbsf)	15
Power Max (Watts)	13
Max Stroke (in)	0.50
Pressure Range (bar)	20-100 psi
Temp Range Standard	-35‚° to 80‚°C (-30‚° to 180‚°F)
Temp Range Viton	-30‚° to 120‚°C (-20‚° to 250‚°F)
Actuation Time per 25 mm (1.00") of travel (sec) (Sec)	0.10
Linear Accuracy per 25 mm travel (‚±mm)	0.003
Linear Accuracy per 1" travel (‚±in)	0.001
Direct Connect	Yes
Special Feature	Zero Side Play
Weight (kg)	0.08
Weight (lb)	0.18
Product Series Description	Rail
Product Function	Linear Positioning
Product Family	Thrusters / Slides
Product Group	ball rail slides
Brand	Robohand
Distributor Group	Robohand Gripping Solutions
