Brand: DESTACO

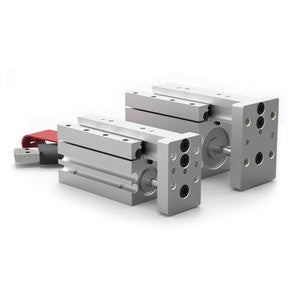

DESTACO MPS-2M-2 MPS MINIATURE SLIDE

SKU: DE-STA-CO-MPS-2M-2
MPN: MPS-2M-2

$706.21
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Get your hands on the DESTACO MPS-2M-2 MPS MINIATURE SLIDE! With a built-in air cylinder and preloaded dual "V"DESTACO MPS-2M-2 MPS MINIATURE SLIDE" roller bearings, this slide eliminates side play and ensures excellent part position repeatability. Plus, it's extremely small in size, making it the perfect addition to your toolkit. The product offers a metric version with a force of 196 kg (44 lbs) and a stroke length of 25.0 mm (1.000 in). It can handle payloads up to 0.5 kg (1.0 lb) and has a cylinder bore of 19.1 mm (0.75 in). With a thrust force of 196 N (44 lbsf), a max power of 25 Watts, and a maximum stroke of 1.00 in, this slide is a powerhouse in a compact package. Don't miss out - get yours now and experience its full potential!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO MPS-2M-2 MPS MINIATURE SLIDE

Built-in air cylinder
Preloaded Dual "V"DESTACO MPS-2M-2 MPS MINIATURE SLIDE" roller bearings eliminate side play for excellent part position repeatability"
Extremely small size

Product	Metric Version
Force (kg)	196
Force (lb)	44
Stroke (mm)	25.0
Stroke (in)	1.000
Payload (kg)	0.5
Payload (lb)	1.0
Cylinder Bore (mm)	19.1
Cylinder Bore (in)	.75
Thrust Force (N)	196
Thrust Force (lbsf)	44
Power Max (Watts)	25
Max Stroke (in)	1.00
Pressure Range (bar)	20-100 psi
Temp Range Standard	-35‚° to 80‚°C (-30‚° to 180‚°F)
Temp Range Viton	-30‚° to 120‚°C (-20‚° to 250‚°F)
Actuation Time per 25 mm (1.00") of travel (sec) (Sec)	0.16
Linear Accuracy per 25 mm travel (‚±mm)	0.003
Linear Accuracy per 1" travel (‚±in)	0.001
Direct Connect	Yes
Special Feature	Zero Side Play
Weight (kg)	0.14
Weight (lb)	0.32
Product Series Description	Rail
Product Function	Linear Positioning
Product Family	Thrusters / Slides
Product Group	ball rail slides
Brand	Robohand
Distributor Group	Robohand Gripping Solutions
