Brand: DESTACO

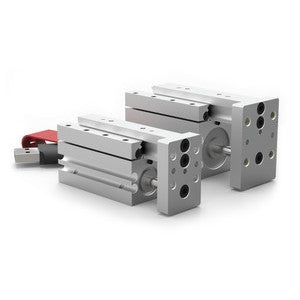

DESTACO MPS-2M-3 MPS MINIATURE SLIDE

SKU: DE-STA-CO-MPS-2M-3
MPN: MPS-2M-3

$791.85
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the exceptional precision and reliability of the DESTACO MPS-2M-3 MPS MINIATURE SLIDE. This powerful slide features a built-in air cylinder and preloaded Dual "V" roller bearings for unparalleled accuracy, while its extremely small size makes it perfect for any workspace. With impressive force, stroke, and payload capabilities, this product is a true game-changer. Upgrade to the metric version today and witness a force of 196 kg (44 lb), stroke of 38.0 mm (1.500 in), and payload of 0.9 kg (2.0 lb). Don't miss out on the innovative 19.1 mm (0.75 in) cylinder bore and impressive max thrust force of 196 N (44 lbsf). Let the DESTACO MPS-2M-3 MPS MINIATURE SLIDE revolutionize your productivity with its maximum power of 38 watts, maximum stroke of 1.50 in, and pressure range of

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO MPS-2M-3 MPS MINIATURE SLIDE

Built-in air cylinder
Preloaded Dual "V"DESTACO MPS-2M-3 MPS MINIATURE SLIDE" roller bearings eliminate side play for excellent part position repeatability"
Extremely small size

Product	Metric Version
Force (kg)	196
Force (lb)	44
Stroke (mm)	38.0
Stroke (in)	1.500
Payload (kg)	0.9
Payload (lb)	2.0
Cylinder Bore (mm)	19.1
Cylinder Bore (in)	.75
Thrust Force (N)	196
Thrust Force (lbsf)	44
Power Max (Watts)	38
Max Stroke (in)	1.50
Pressure Range (bar)	20-100 psi
Temp Range Standard	-35‚° to 80‚°C (-30‚° to 180‚°F)
Temp Range Viton	-30‚° to 120‚°C (-20‚° to 250‚°F)
Actuation Time per 25 mm (1.00") of travel (sec) (Sec)	0.19
Linear Accuracy per 25 mm travel (‚±mm)	0.003
Linear Accuracy per 1" travel (‚±in)	0.001
Direct Connect	Yes
Special Feature	Zero Side Play
Weight (kg)	0.18
Weight (lb)	0.40
Product Series Description	Rail
Product Function	Linear Positioning
Product Family	Thrusters / Slides
Product Group	ball rail slides
Brand	Robohand
Distributor Group	Robohand Gripping Solutions
