Brand: FREER NAAMS

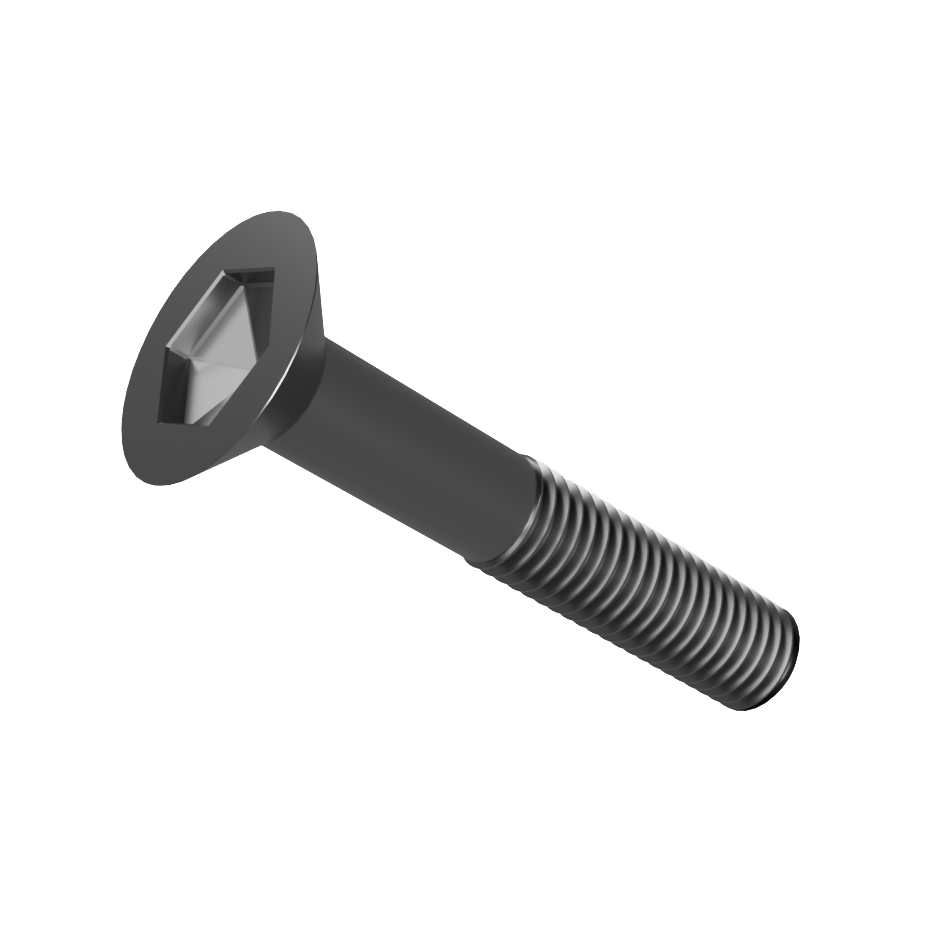

NAAMS Socket Flat Head Cap Screw F030409 M4 x 0.7 x 16
SKU: FN-F030409
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Looking for CAD models?
Request NAAMS CAD Models
Request NAAMS CAD Models
Short Description
Freer NAAMS fastener components.Socket flat head cap screw F03 series.

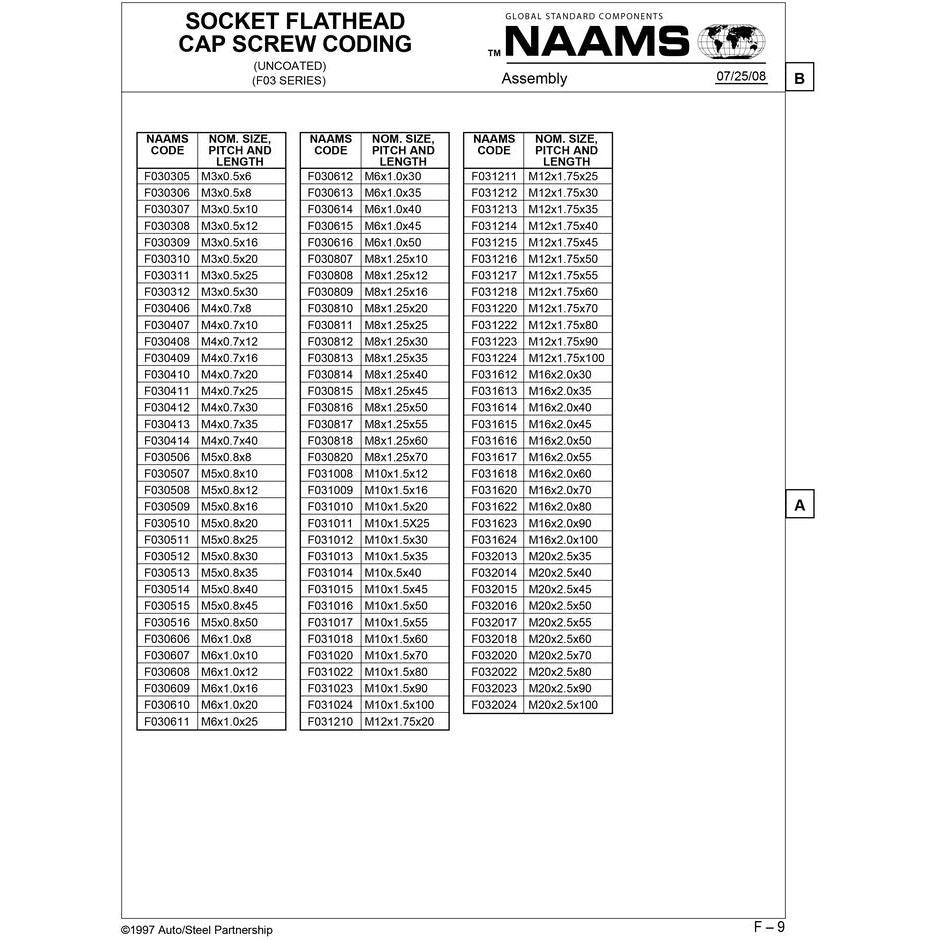

Part number: F030409.
Manufactured from class 12.9 alloy steel.
Full Description

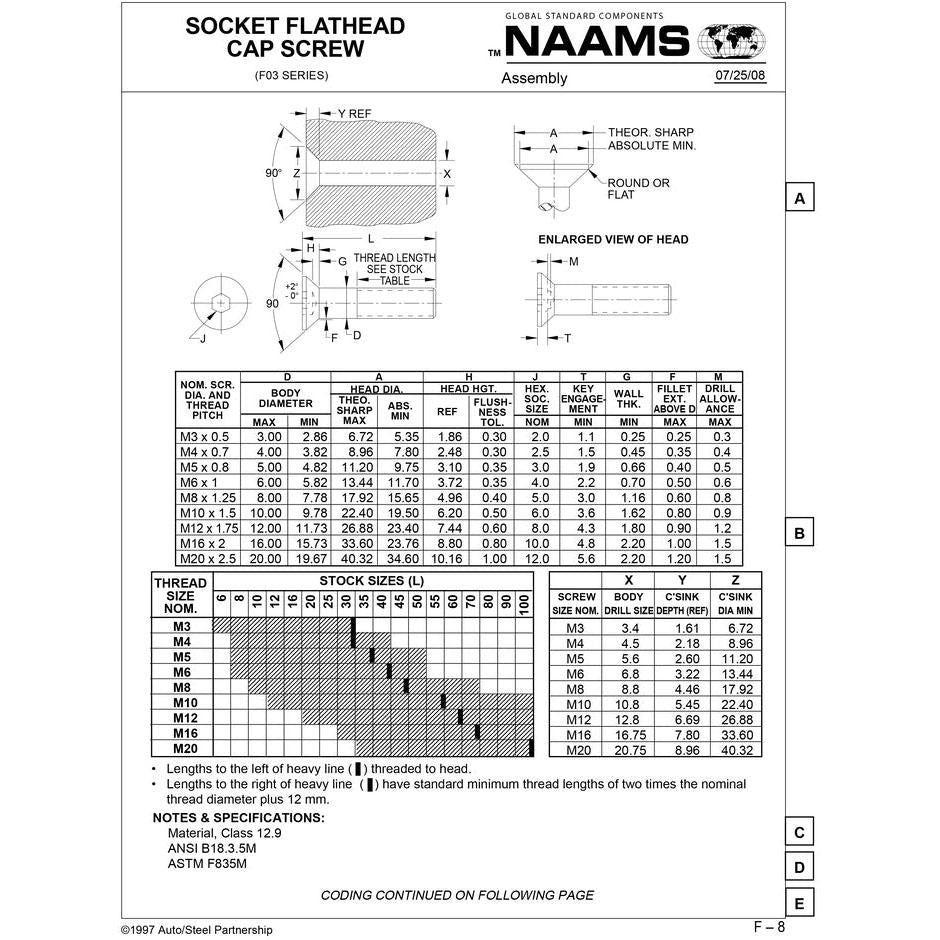

FREER NAAMS SOCKET FLAT HEAD CAP SCREW F030409
Material: Class 12.9 Steel
Size, Pitch, and Length: M4x0.7x16
Dia. and Thread Pitch |
D | A | H | J | T | G | F | M | |||
Body dia. | Head dia. | Head hgt. | Hex. size | Key engage. | Wall thk. | Fillet ext. | Drill allow. | ||||
Max | Min | Theo. Sharp max | Abs. min | Ref | Flush tol. | Nom | Min | Min | Max | Max | |
M4 x 0.7 | 4 | 3.82 | 8.96 | 7.8 | 2.48 | 0.3 | 2.5 | 1.5 | 0.45 | 0.35 | 0.4 |
