Brand: Boneham

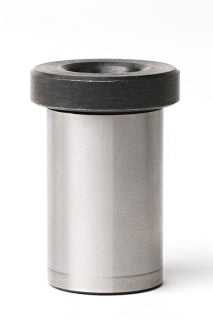

Drill Bushing - Head Press Fit H1012BR
SKU: BH-H1012BR
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*This product can only be purchased with a shipping account. We apologize for the inconvenience.*
Short Description
Drill Bushing - Head Press Fit H1012BR1/16" Drill Size with STEEL Finish.
RC 62-64 to RC 62-64 with 1/16" 0.059"
H-TYPE Technical Specs
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Drill Bushing - Head Press Fit H1012BR
Headed press fit drill bushings are dimensionally identical to the headless range, but for the head. Headed press fitdrill bushings contain a shoulder at the top of the bush to allow greater axial force on the jig, and aids where it isdesired, to feed down to a dead stop. The head of the bushing can be pressed into the plate easier and can be left either exposed above the plate surface orcounter bored to sit flush.
Concentricity Tolerance: .0003" T.I.R. Max
Drill Size: 1/16"
Finish: STEEL
Hardness: RC 62-64
Inside Dia.: 1/16"
Inside Dia. Tolerance: +.0001- +.0004"
Material: 52100 Thru Hardened
Outside Dia.: 5/32"
Outside Dia. Tolerance: +0.0015 - +0.0012"
Length under Head: 3/4"
Head Thk: 0.09375
Head Dia: 0.3125
