Brand: Boneham

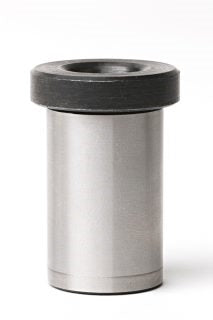

Drill Bushing - Head Liner HL11222RA
SKU: BH-HL11222RA
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*This product can only be purchased with a shipping account. We apologize for the inconvenience.*
Short Description
Drill Bushing - Head Liner HL11222RADrill Size with Steel Finish.
RC 62-64 to RC 62-64 with 1-3/8" 1"
HL-TYPE Technical Specs
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Drill Bushing - Head Liner HL11222RA
Slip-Fixed Renewable Drill Bushings incorporate two features on one bush. Used in conjunction with liner bushings,Slip-Fixed Renewable Drill Bushings can be held in place by a lock screw, tenon or stop pin. The bushing is a slide fitin its corresponding liner, which allows for accurate alignment and easy replacement. The removable fixed feature of the bushing is normally used in high production work. The bushing can be easilyand quickly replaced with a minimum loss of production. The removable slip feature of the bushing is used whenmore than one operation is carried out. Many drill sizes can be used with one bushing liner. The bushing is instantlyremovable after each operation. Both methods are designed to speed up operations and improve productivity. Theknurled head allows for easy handling of the bushing to enable it to be rotated out of the removable slip feature.
Concentricity Tolerance: .0005" T.I.R Max
Drill Size:
Finish: Steel
Hardness: RC 62-64
Inside Dia.: 1-3/8"
Inside Dia. Tolerance: .0002-+.0006"
Material: 52100 Thru Hardened
Outside Dia.: 1-3/4"
Outside Dia. Tolerance: +0.0019/+0.0023"
Overall Length: 1-9/16"
Head Diameter: 1.875
Head Thickness: 0.1875
