Brand: DESTACO

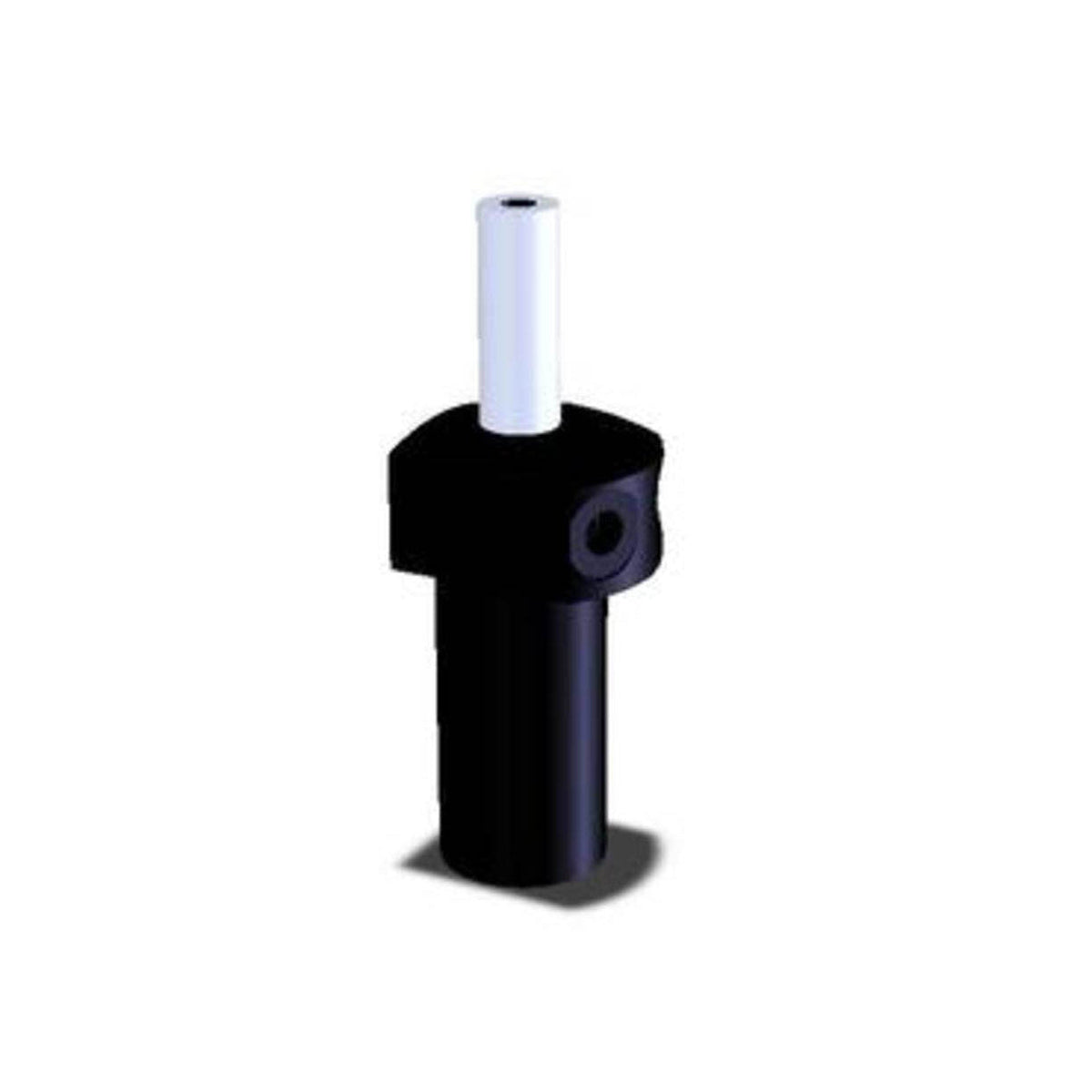

DESTACO 030-1-S-1100 HYDRAULIC SWING

SKU: DE-STA-CO-030-1-S-1100
MPN: 030-1-S-1100

$789.73
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

DESTACO 030-1-S-1100 HYDRAULIC SWING, LH SWING, 1100LB. Obsolete or soon to be obsolete product. This item is subject to stock on hand, and we will not be replenishing the current inventory on these items. Please call for pricing and stock availability.

The DESTACO 030-1-S-1100 HYDRAULIC SWING offers superior performance and value as an alternative to other brands. Featuring a robust design and advanced seals, this hydraulic threaded body swing clamp is built to withstand 5,000 PSI operation and provide long cycle life. With a unique triple track piston rod and hardened construction, it is highly durable and can be easily adjusted on-site for swing direction. Its advanced metal treated body ensures resistance against wear and corrosion, making it a reliable choice for hydraulic work holding needs. This single-acting product provides a force of 1,100 lbs and a stroke of 0.890 inches, with a SAE #4 port size and threaded body mounting option. The LH (left-hand) swing direction is the standard offering, and the vertical clamp stroke measures 9.9 mm (0.39 inches). Don't settle for less when you can have the best with the DESTACO 030-1-S-1100.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 030-1-S-1100 HYDRAULIC SWING

SELECT hydraulic threaded body swing clamps are high quality and cost-effective alternatives to competitive brands.

Left-hand swing (counter-clockwise)
Advanced seals and wipers utilize a special, highly wear-resistant construction for long cycle life and 5,000 PSI operation
Triple track piston rod design for field adjustable swing direction
Hardened and hard chrome plated piston rod for increased strength and wear resistance
Advanced metal treated body for superior wear and corrosion resistance
MRO interchange design

Force (lb)	1,100
Stroke (in)	0.890
Operating Pressure (PSI)	5000
Port Size	SAE #4
Mounting	Threaded Body
Operating Method	Single-Acting
Product Type	Swing/Pull Clamps
Swing Direction	LH (Standard)
Vertical clamp stroke (mm)	9.9
Vertical clamp stroke (in)	0.39
Product Series Description	Manual Power Source
Product Function	Clamping
Product Family	Hydraulic Clamping
Product Group	hydraulic work holding
