Brand: Ingersoll

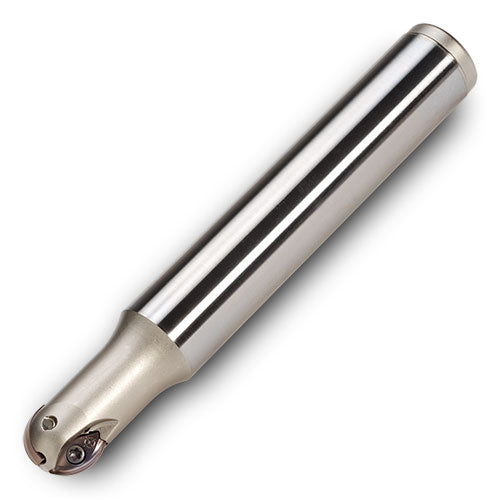

Ingersoll IC526166351 1TW8Q-06013S7R01

SKU: FTS-IC526166351
MPN: 27112803

$391.28
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

IC526166351 1TW8Q-06013S7R01

Full Description

Cutting Diameter (DC/DCX)	5/8"	Connection Diameter Machine Side (DCONMS)	3/4"
Cutting Diameter (DC)	5/8"	Usable Length (LU)	1"
Cutting Item Count (CICT)	2	Corner Radius (RE)	0.313"
Depth of Cut Maximum (APMX)	0.47"	Measurement Type	Inch
Overall Length (OAL)	5"	Body Material	Steel
Application	\| Helical Interpolation \| Rampdown \| Slotting \|	Protruding Length (LPR)	1-3/8"

Family Description

Roughing Ball Nose End Mill, 2 Effective Insert with 2 indexes Max. Depth of Cut: Full Radius Insert Corner: .312" R Semi & Heavy Duty Roughing Center web for added strength
