LATERAL PLUNGERS - 22150.0311

SKU: EH-22150.0311
MPN: 22150.0311

$7.38
Unit price per
Save $0.56

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

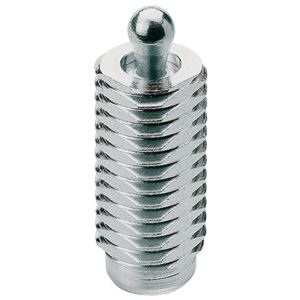

Lateral Plungers, with thread, without seal/standard spring load | d1=M12 / l1=11.5 mm / Spring load=~ 50 N | 22150.0311
Halder 22150.0311 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

To be used for positioning and applying pressure, e.g. during painting and sandblasting.

Material

Body

Steel, zinc-plated by galvanization

Spring

Steel, blackened

Steel, case-hardened, zinc-plated by galvanization

Assembly

Lateral plungers are installed by screwing in by means of a mounting tool.

Formula for calculating the center distance for the mounting hole:

l0 = z/2 + w + x,

l0 = center distance,

y = workpiece height,

w = workpiece length,

x = coordinate dimension,

s = stroke,

z = stop diameter

Calculation dimension x:

y greater than or equal to l2 - d2/2, then x = d2/2 - s

y smaller than l2 - d2/2, then x = d2/2Ã¡-Ã¡sÃ¡-Ã¡[(l2Ã¡-Ã¡d2/2Ã¡-Ã¡y)Ã¡*Ã¡0,123]

Characteristic

Standard spring load = spring from steel, blackened

Halder 22150.0311 Data Sheet
