Brand: Northwestern Tools

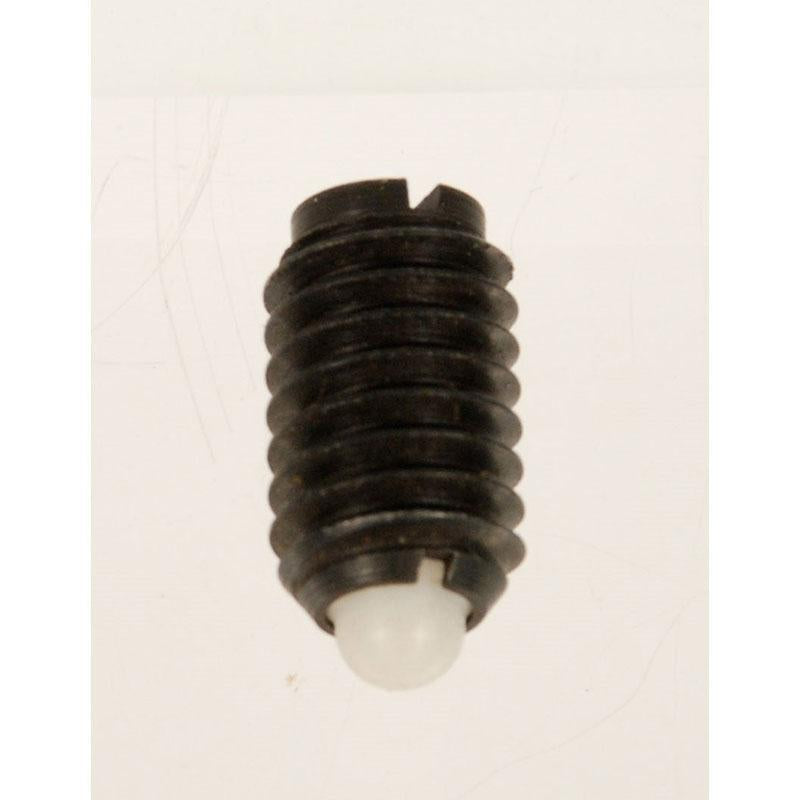

NORTHWESTERN TOOLS 33302P Short Spring Plungers - Light Pressures - With Lock. Element - White Delrin Nose, End Force: 0.5 Initial x 1.0 Half x 1.5 Full

SKU: NW-33302P
MPN: 33302P

$5.69
Unit price per
Save $2.87

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $200 minimum for all Northwestern Tools product orders*

Short Description

NORTHWESTERN TOOLS 33302P Short Spring Plungers - Light Pressures - With Lock. Element - White Delrin Nose, End Force: 0.5 Initial x 1.0 Half x 1.5 Full
Northwestern Part Number: 33302P
Carr Lane equivalent: N/A

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**

Full Description

NORTHWESTERN TOOLS 33302P Short Spring Plungers - Light Pressures - With Lock. Element - White Delrin Nose, End Force: 0.5 Initial x 1.0 Half x 1.5 Full

Short Spring Plungers - Light Pressures - With Lock. Element - White Delrin Nose, End Force: 0.5 Initial x 1.0 Half x 1.5 Full

Northwestern Part Number: 33302P

Carr Lane equivalent: N/A

Product Information

Steel Short Spring Plungers with Light Spring Pressures

Bodies are 12L14 steel with a black oxide finish.

Noses are case hardened 12L14 steel zinc plated.

The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element.

To prevent possible spring damage, use of a Northwestern Wrench is recommended when installing from plunger end.

Steel Short Spring Plungers with Light Spring Pressures
Heat Treated Zinc Plated Steel Nose
With Lock Ele. Part No.	Without Lock Ele. Part No.	End Pressures Lbs. Start	End Pressures Lbs. 1/2	End Pressures Lbs. Full	A	B	C	D	Net Lbs. Per 100
33200	33200P	0.5	1.0	1.5	#8-32	7/16	.052	.070	1/2
33203	33203P	0.5	1.0	1.5	#8-36	7/16	.052	.070	1/2
33205	33205P	0.75	1.62	2.5	#10-32	15/32	.065	.093	1/2
33208	33208P	1.0	2.25	3.5	1/4-20	17/32	.078	.119	1/2
33210	33210P	1.5	2.75	4.0	5/16-18	9/16	.084	.135	1
33212	33212P	1.5	3.25	5.0	3/8-16	5/8	.110	.186	1-1/2
33214	33214P	1.75	3.62	5.5	1/2-13	3/4	.151	.248	2-1/2
33216	33216P	2.0	5.25	8.5	5/8-11	1-1/16	.215	.310	6
White Delrin Nose
33300	33300P	0.5	1.0	1.5	#8-32	7/16	.052	.070	1/2
33302	33302P	0.5	1.0	1.5	#8-36	7/16	.052	.070	1/2
33304	33304P	0.75	1.62	2.5	#10-32	15/32	.065	.093	1/2
33306	33306P	1.0	2.25	3.5	1/4-20	17/32	.078	.119	1/2
33308	33308P	1.5	2.75	4.0	5/16-18	9/16	.084	.135	1
33310	33310P	1.5	3.25	5.0	3/8-16	5/8	.110	.186	1
33312	33312P	1.75	3.62	5.5	1/2-13	3/4	.151	.248	2
33314	33314P	2.0	5.25	8.5	5/8-11	1-1/16	.215	.310	5

All parts conform to TCMAI Standards
