Brand: Trico

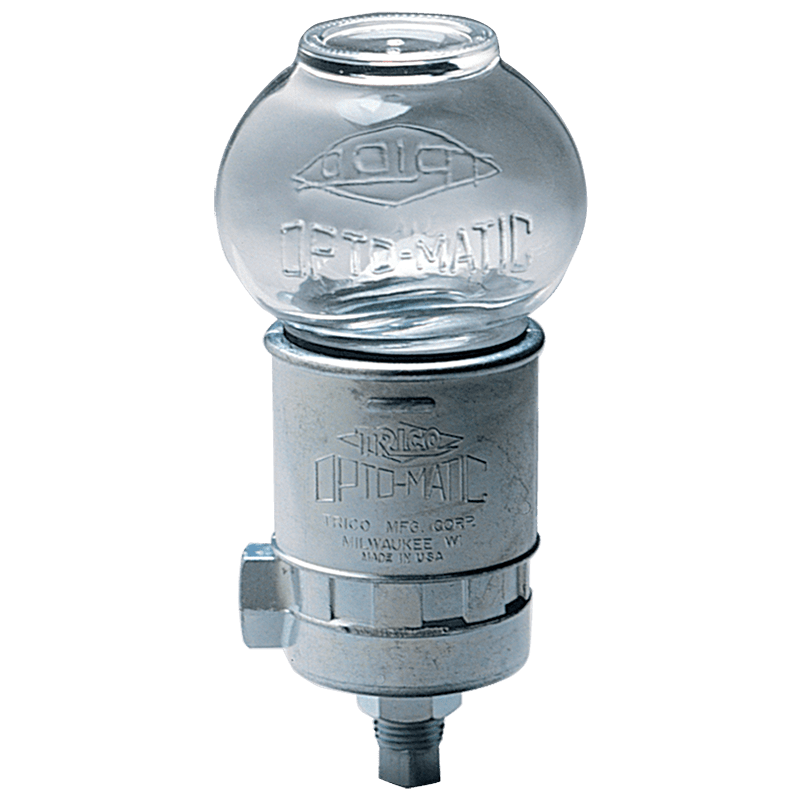

Trico NW5030003 OPTO-MATIC Constant Level Oiler - 4 oz

SKU: FTS-NW5030003
MPN: 30003

$77.86
Unit price per
Save $1.91

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

*Please note, there is a $200 minimum for all Trico product orders*

Short Description

Trico 30003 OPTO-MATIC Constant Level Oiler - 4 oz

Full Description

Type	Oiler	Diameter	2 11/16"
Pump Material	Zinc Plated	Outlet Thread Size	1/4"
Maximum Oil Level	1"	Outlet Thread Type	NPT
Minimum Oil Level	9/32"	Minimum Height	5"
Capacity	4 oz	Maximum Height	5 3/4"
Style	Lever Type

• Glass Reservoir Models • Provides a constant level of oil in a pump bearing housing, gear box, or other wet sump applications. Glass reservoir provides long life in corrosive environments. Different reservoir capacities allow use in many applications. • One piece glass reservoir ensures proper constant level function. There is no possibility of air leakage that would cause overfilling of the bearing housing. • Adjustable level setting allows use in many applications • Multiple air vent slots provide for proper functioning at all times • Large surge chamber prevents overflow of oil during machine start-up or shut-down • Side and bottom connections for simplified installation
