Brand: INDUSTRIAL MAGNETICS

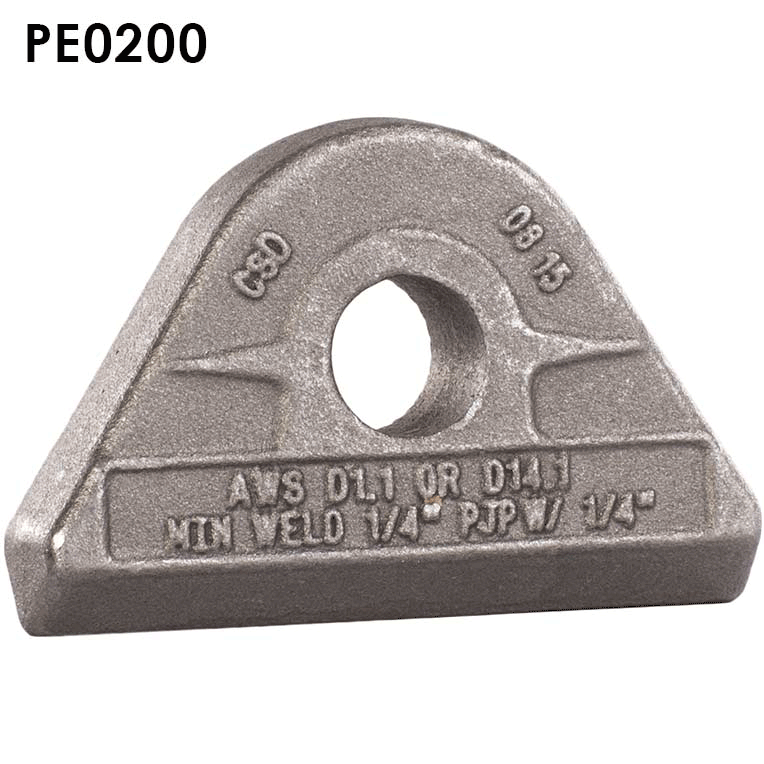

Industrial Magnetics MAG-MATE® Padeye 2 Ton Weld-On PE0200
SKU: IM-PE0200
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Industrial Magnetics MAG-MATE Padeye 2 Ton Weld-On PE0200. Padeyes. If your product design requires a padeye, a great deal of time and expense can be incurred in the process of engineering, fabricating, machining and certifying lifting padeyes in-house.*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Industrial Magnetics MAG-MATE® Padeye 2 Ton Weld-On PE0200
Padeyes
If your product design requires a padeye, a great deal of time and expense can be incurred in the process of engineering, fabricating, machining and certifying lifting padeyes in-house. Speed up your production, testing, and approval process and expedite the delivery of your finished product to market with IMI's pre-engineered, certified and ready-to-weld lifting lugs.
Composed of A36 carbon steel and available in 6 standard sizes, these padeyes are rated for 1/2 ton up to 6-1/2 tons and come with a reamed hole to fit a shackle pin/bolt(sold separately) at +/- .001".
The padeyes feature a date code and a guided weld line, as well as listing both the requirements for the weld specification/type and the welder's qualifications.
Literature Download: Padeyes| Padeyes - Lifting Lugs | |||||||||
| Carbon Steel Part No. | Stainless Steel Part No. |
Shackle Size (in) | Working Load Limit (ton) | Bolt hole (in) | Width (in) | Length (in) | Height (in) | Weight (lbs) | Minimum Weld |
|---|---|---|---|---|---|---|---|---|---|
| PE0050 | PE0050S | 1/4 | 1/2 | 3/8 | 7/16 | 2-1/8 | 1-3/8 | 0.20 | 0.188" |
| PE0100 | PE0100S | 3/8 | 1 | 15/32 | 9/16 | 2-7/16 | 1-5/8 | 0.40 | 1/4" |
| PE0150 | PE0150S | 7/16 | 1-1/2 | 17/32 | 5/8 | 2-3/4 | 1-9/16 | 0.40 | 3/16 PJP with 1/4" Fillet |
| PE0200 | PE0200S | 1/2 | 2 | 43/64 | 11/16 | 3-1/4 | 2-1/8 | 0.80 | 1/4 PJP with 1/4" Fillet |
| PE0475 | PE0475S | 3/4 | 4-3/4 | 15/16 | 1-1/8 | 4-7/16 | 2-5/8 | 2.20 | 5/16 PJP with 5/16" Fillet |
| PE0650 | PE0650S | 7/8 | 6-1/2 | 1-1/16 | 1-5/16 | 5-3/16 | 2-15/16 | 3.05 | 7/16 PJP with 7/16" Fillet |
