Brand: DESTACO

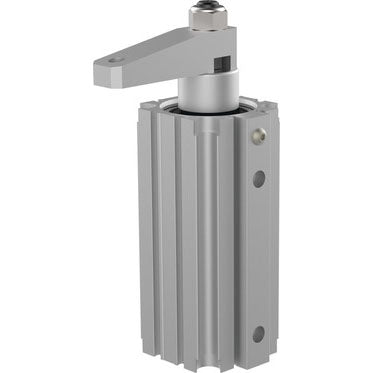

DESTACO 9550-2GL PNEUMATIC SWING CLAMP 50MM LH G PORTS

SKU: DE-STA-CO-9550-2GL
MPN: 9550-2GL

$635.48
Unit price per
Save $49.15

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the upgraded versatility and ease of installation with the DESTACO 9550-2GL PNEUMATIC SWING CLAMP 50MM LH G PORTS. These new versions retain all the innovative features of the original series, but can now be mounted on any face or screwed directly into the body. The unique design allows for a 90° swing on a horizontal plane before clamping, and the shielded piston rod protects from weld spatter. Clamping arms are sold separately. Stroke of 0.790 and a cylinder bore of 1.97. The clamping force of 196 lbf. at 5 bar [72 psi] and a G-1/8 air port size for the complete package.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 9550-2GL PNEUMATIC SWING CLAMP 50MM LH G PORTS

The 9500 series has been upgraded to make them more versatile and easier to install. These new versions have all the same innovative features as the original but can now be mounted to any face or with mounting screws threaded directly into the body.

Unique design allows clamp arm to swing 90° on a horizontal plane before moving downward on its clamping stroke
Shielded piston rod for protection from weld spatter
Optional mounting accessories for side flange or tapped mounting
Available in four bore sizes, clamping arms sold separately

Stroke (in)	0.790
Cylinder Bore (in)	1.97
Clamping Force @ 5Bar[72Psi] (lbf.)	196
Mount	Block: Side flange, tapped hole, standard
Swing Direction	LH
Air Port size	G-1/8
Replacement Seal Kit	955092
Foot Mount Kit	955060
Tapped Hole Mount Kit	955061
Standard Mount Kit	955062
Air Consumption (per double stroke at 7 psi) (in³)	0.026
Stroke during rotation (in)	0.00
Vertical clamp stroke (in)	0.79
Weight (lb)	3.33
Product Series Description	Swing Clamp
Product Function	Clamping
Product Family	Light-Duty Pneumatic Clamping
Product Group	pneumatic swing clamps
