Brand: DESTACO

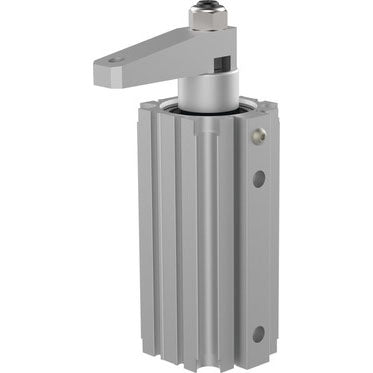

DESTACO 9550-2R PNEUMATIC SWING CLAMP 50MM RH
SKU: DE-STA-CO-9550-2R
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 9550-2R PNEUMATIC SWING CLAMP 50MM RH is now even more versatile and easier to install with the upgraded 9500 series. Its innovative features remain, but it can now be mounted on any face or with mounting screws threaded directly into the body. Its unique design allows for a 90° swing on a horizontal plane before moving downward on the clamping stroke, and the shielded piston rod protects against weld spatter. With a stroke of 0.790 inches, a cylinder bore of 1.97 inches, and a clamping force of 196 lbf at 5Bar [72Psi], this product is available in a Right Hand swing direction with an air port size of 1/8 NPT.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 9550-2R PNEUMATIC SWING CLAMP 50MM RH
The 9500 series has been upgraded to make them more versatile and easier to install. These new versions have all the same innovative features as the original but can now be mounted to any face or with mounting screws threaded directly into the body.
- Unique design allows clamp arm to swing 90° on a horizontal plane before moving downward on its clamping stroke
- Shielded piston rod for protection from weld spatter
- Optional mounting accessories for side flange or tapped mounting
- Available in four bore sizes, clamping arms sold separately
Stroke (in) | 0.790 |
Cylinder Bore (in) | 1.97 |
Clamping Force @ 5Bar[72Psi] (lbf.) | 196 |
Mount | Block: Side flange, tapped hole, standard |
Swing Direction | RH |
Air Port size | 1/8 NPT |
Replacement Seal Kit | 955092 |
Foot Mount Kit | 955060 |
Tapped Hole Mount Kit | 955061 |
Standard Mount Kit | 955062 |
Air Consumption (per double stroke at 7 psi) (in³) | 0.026 |
Stroke during rotation (in) | 0.00 |
Vertical clamp stroke (in) | 0.79 |
Weight (lb) | 3.33 |
Product Series Description | Swing Clamp |
Product Function | Clamping |
Product Family | Light-Duty Pneumatic Clamping |
Product Group | pneumatic swing clamps |
