Brand: DESTACO

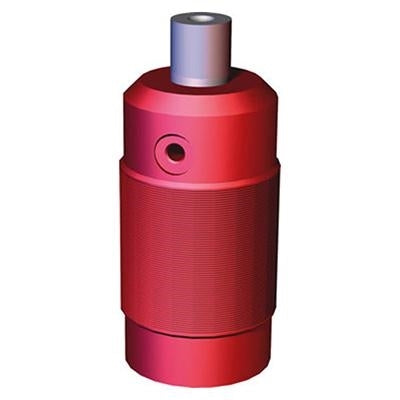

DESTACO 035-132-290 PNEUMATIC SWING CLAMP, LESS ARM

SKU: DE-STA-CO-035-132-290
MPN: 035-132-290

$424.02
Unit price per
Save $32.79

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Introducing the DESTACO 035-132-290 PNEUMATIC SWING CLAMP, LESS ARM. This powerful clamp, compatible with shop air, provides up to 50 pounds of clamping force. Available in various swing directions and arm designs, it offers an impressive stroke and sensor-ready feature. Plus, its lightweight design and threaded body make for easy installation on any fixture plates. Upgrade your clamping system today with this light-duty pneumatic clamp from DESTACO!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 035-132-290 PNEUMATIC SWING CLAMP, LESS ARM

SELECT line of pneumatic swing/pull clamps are designed for applications not requiring hydraulic power. The fast acting clamps can generate up to 50 pounds of clamping force from shop air.

Swing motion available in 0, 45, 60, and 90 degrees
Two styles of arms
Double-locked arm design is bolted to piston shaft and around shaft diameter for extra rigidity
Threaded body for mounting through fixture plates

Stroke (in)	1.130
Cylinder Bore (in)	1.26
Clamping Force @ 5Bar[72Psi] (lbf.)	30
Mount	Threaded Body
Replacement Seal Kit	905517
Swing Direction	LH
Air Port size	1/8 NPT
Air Consumption (per double stroke at 7 psi) (in³)	0.008
Jam Nut	051-187-160
Stroke during rotation (in)	0.56
Vertical clamp stroke (in)	0.57
Sensor Ready	No
Weight (lb)	0.94
Product Series Description	Swing Clamp
Product Function	Clamping
Product Family	Light-Duty Pneumatic Clamping
Product Group	pneumatic swing clamps
