Brand: DESTACO

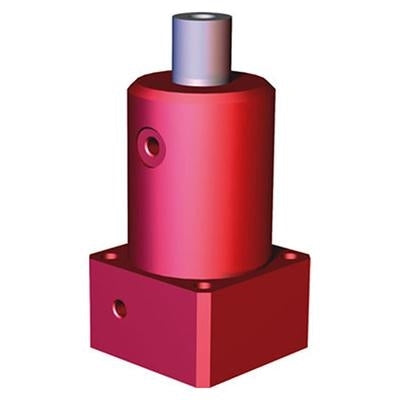

DESTACO 035-225-190 PNEUMATIC SWING CLAMP, LESS ARM
SKU: DE-STA-CO-035-225-190
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 035-225-190 PNEUMATIC SWING CLAMP, LESS ARM offers an efficient yet powerful solution for those who don't require hydraulic power. With the ability to generate up to 50 pounds of clamping force using only shop air, these fast-acting clamps are perfect for various applications. With a 90-degree swing motion and two arm styles to choose from, the double-locked arm design adds extra rigidity while the threaded body allows for easy mounting on fixture plates. This lightweight clamp boasts a 1.050 inch stroke, 0.98 inch cylinder bore, and a clamping force of 20 pounds at 5Bar/72Psi.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 035-225-190 PNEUMATIC SWING CLAMP, LESS ARM
SELECT line of pneumatic swing/pull clamps are designed for applications not requiring hydraulic power. The fast acting clamps can generate up to 50 pounds of clamping force from shop air.
- Swing motion available in 90 degrees
- Two styles of arms
- Double-locked arm design is bolted to piston shaft and around shaft diameter for extra rigidity
- Threaded body for mounting through fixture plates
Stroke (in) | 1.050 |
Cylinder Bore (in) | 0.98 |
Clamping Force @ 5Bar[72Psi] (lbf.) | 20 |
Mount | Flanged Body |
Replacement Seal Kit | 905516 |
Swing Direction | RH |
Air Port size | 10-32 |
Air Consumption (per double stroke at 7 psi) (in³) | 0.005 |
Stroke during rotation (in) | 0.54 |
Vertical clamp stroke (in) | 0.51 |
Sensor Ready | No |
Weight (lb) | 0.56 |
Product Series Description | Swing Clamp |
Product Function | Clamping |
Product Family | Light-Duty Pneumatic Clamping |
Product Group | pneumatic swing clamps |
