Brand: DESTACO

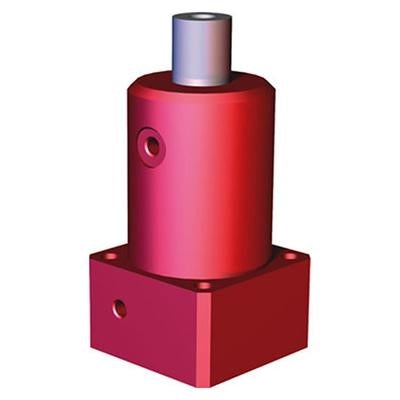

DESTACO 035-250-190 PNEUMATIC SWING CLAMP, LESS ARM

SKU: DE-STA-CO-035-250-190
MPN: 035-250-190

$398.92
Unit price per
Save $30.86

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Elevate your industrial operations with DESTACO 035-250-190 PNEUMATIC SWING CLAMP, LESS ARM. Our SELECT line of pneumatic swing/pull clamps are specifically designed for applications that don't require hydraulic power. These fast acting clamps can generate up to 50 pounds of clamping force using just shop air. Experience smooth and efficient swing motion with 90 degrees of rotation. Choose from two arm styles - our double-locked design provides extra rigidity with a bolted arm attached to the piston shaft. The threaded body allows for easy mounting onto fixture plates. Featuring a stroke of 1.130 inches and a cylinder bore of 1.97 inches, this clamp delivers a strong clamping force of 69 lbf. at 5Bar[72Psi]. Our flanged body, replacement seal kit 905519, ensures a secure and durable hold. The RH swing direction offers great versatility.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 035-250-190 PNEUMATIC SWING CLAMP, LESS ARM

SELECT line of pneumatic swing/pull clamps are designed for applications not requiring hydraulic power. The fast acting clamps can generate up to 50 pounds of clamping force from shop air.

Swing motion available in 90 degrees
Two styles of arms
Double-locked arm design is bolted to piston shaft and around shaft diameter for extra rigidity
Threaded body for mounting through fixture plates

Stroke (in)	1.130
Cylinder Bore (in)	1.97
Clamping Force @ 5Bar[72Psi] (lbf.)	69
Mount	Flanged Body
Replacement Seal Kit	905519
Swing Direction	RH
Air Port size	1/8 NPT
Air Consumption (per double stroke at 7 psi) (in³)	0.023
Stroke during rotation (in)	0.63
Vertical clamp stroke (in)	0.51
Sensor Ready	No
Weight (lb)	1.90
Product Series Description	Swing Clamp
Product Function	Clamping
Product Family	Light-Duty Pneumatic Clamping
Product Group	pneumatic swing clamps
