Brand: Boneham

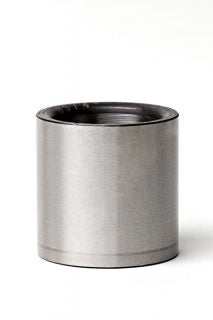

Drill Bushing - Headless Press Fit Thin Wall PT1210CW

SKU: BH-PT1210CW
MPN: PT1210CW

Unit price per

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This product can only be purchased with a shipping account. We apologize for the inconvenience.*

Short Description

Drill Bushing - Headless Press Fit Thin Wall PT1210CW
#41 Drill Size with Steel Finish.
RC 62-64 to RC 62-64 with 0.0960" 2.4mm
PT-TYPE Technical Specs

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

Drill Bushing - Headless Press Fit Thin Wall PT1210CW

Headless press fit drill bushings are normally used in jigs where an economically priced drill bushing is required. Thesedrill bushings are also often used where less space is available on the jig plate. Headless press fit drill bushings are pressed into the plate to achieve a flush surface in conjunction with a simpledrilling and reaming operation. Headless drill bushings have less resistance than the headed type when subjected tolarge axial loads.

Concentricity Tolerance: .0003" T.I.R. Max

Drill Size: #41

Finish: Steel

Hardness: RC 62-64

Inside Dia.: 0.0960"

Inside Dia. Tolerance: .0001-+.0004"

Material: 52100 Thru Hardened

Outside Dia.: 3/16"

Outside Dia. Tolerance: +0.0013 - +0.0016"

Overall Length: 5/8"

PT-TYPE Technical Specs
