Brand: HALDER

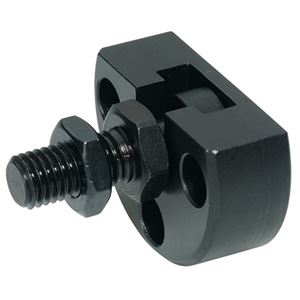

QUICK PLUG COUPLINGS - 25100.0230
SKU: EH-25100.0230
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Quick Plug Couplings, with radial offset compensation and screwed flange/with coupling screw | d1=M10áxá1,25 | 25100.0230Halder 25100.0230 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Quick plug coupling with radial offset compensation requiring only little space. Suitable for multiple applications, e.g. as a link between a piston rod and a linear-movement unit.
Material
Flange
- Heat-treated steel, tempered, phosphated
Coupling part
- Heat-treated steel, tempered, phosphated
Lock nut
- Steel, black (ISO 4035/8675)
Assembly
Assembly and disassembly of this simple, solid and two-part coupling is by means of a T-slot; a manual re-adjustment is not necessary.
The quick plug coupling can be linked to all commonly used pneumatic and hydraulic lifting cylinders via the connecting thread.
Notes
The quick plug coupling does not transmit any torque.
