Brand: Te-Co

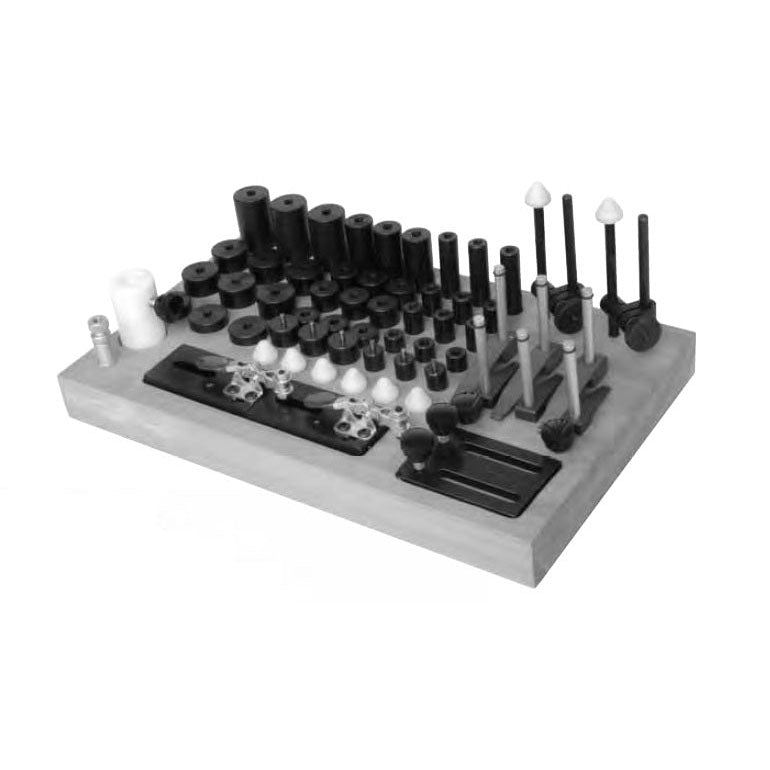

TE-CO 14302 COMPREHENSIVE KIT

SKU: TC-14302
MPN: 14302

$1,411.20
Unit price per
Save $7.80

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $100 minimum for all Te-Co product orders*

Short Description

TE-CO 14302 COMPREHENSIVE KIT
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

TE-CO 14302 COMPREHENSIVE KIT

Technical Specifications:

Provides an accurate fixturing base for workpieces on horizontal and multi-axis machining centers.
Provide a locating and mounting base for fixture
Material: One-piece stress relieved class 40 Meehanite cast iron or equivalent.
Base and upright thickness are milled flat, parallel, and square to .001 in 12".
T-Columns are provided with the standard DIN and JIS mounting configuration.
T-Columns are plain, without a grid pattern or holes, on all four sides.
Grid patterns, non-standard mounting configurations, and special sizes are available and will be quoted upon request.
TE-CO supports these products with a full line of tooling components for your fixturing needs.
Hoist rings are also available for proper material handling.

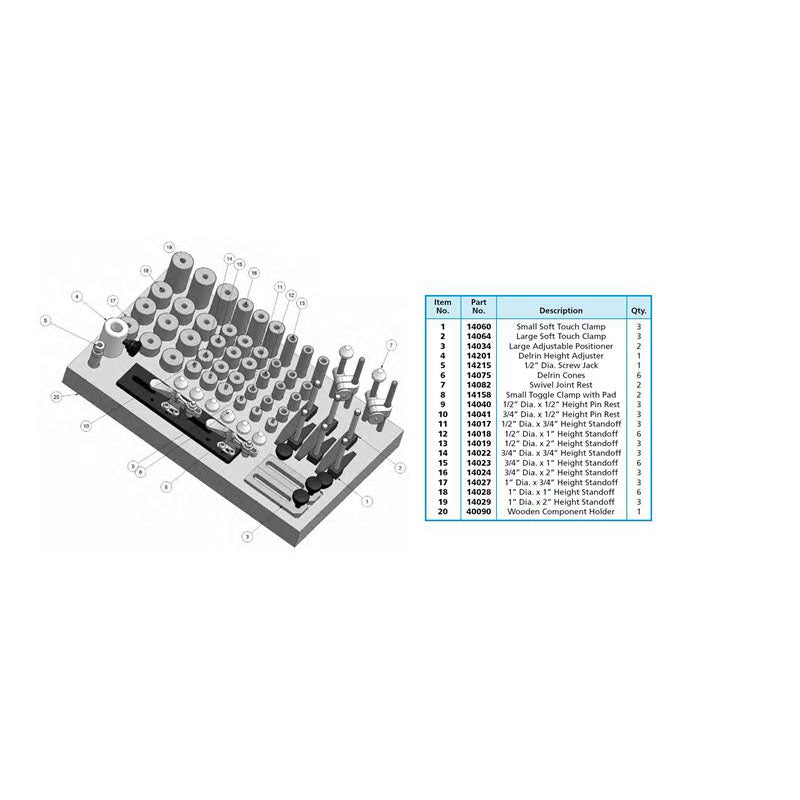

Content

14060 - Small Soft Touch Clamp - 3 pcs.
14064 - Large Soft Touch Clamp - 3 pcs.
14034 - Large Adjustable Positioner - 2 pcs.
14201 - Delrin Height Adjuster - 1 pcs.
14215 - 1/2" Dia. Screw Jack - 1 pcs.
14075 - Delrin Cones - 6 pcs.
14082 - Swivel Joint Rest - 2 pcs.
14158 - Small Toggle Clamp with Pad - 2 pcs.
14040 - 1/2" Dia. x 1/2" Height Pin Rest - 3 pcs.
14041 - 3/4" Dia. x 1/2" Height Pin Rest - 3 pcs.
14017 - 1/2" Dia. x 3/4" Height Standoff - 3 pcs.
14018 - 1/2" Dia. x 1" Height Standoff - 6 pcs.
14019 - 1/2" Dia. x 2" Height Standoff - 3 pcs.
14022 - 3/4" Dia. x 3/4" Height Standoff - 3 pcs.
14023 - 3/4" Dia. x 1" Height Standoff - 6 pcs.
14024 - 3/4" Dia. x 2" Height Standoff - 3 pcs.
14027 - 1" Dia. x 3/4" Height Standoff - 3 pcs.
14028 - 1" Dia. x 1" Height Standoff - 6 pcs.
14029 - 1" Dia. x 2" Height Standoff - 3 pcs.
40090 - Wooden Component Holder - 1 pcs.
