Brand: Te-Co

Te-Co 52702 Short Spring Plungers - Standard Travel - Steel Body, Delrin Nose 10

SKU: TC-52702
MPN: 52702

  • $6.18
    Unit price per
  • Save $3.13
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $100 minimum for all Te-Co product orders*

Short Description

Te-Co 52702 Short Spring Plungers - Standard Travel - Steel Body, Delrin Nose 10
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

Te-Co 52702 Short Spring Plungers - Standard Travel - Steel Body, Delrin Nose 10


Technical Specifications:
  • Material:
    Steel Body: 12L14 Steel
    Stainless Steel Body: 303 Stainless Steel
    Steel Plunger: 12L14 Steel, Case Hardened
    Stainless Steel Plunger: 303 Stainless Steel
  • Heavy End Force: Black Oxide Finish
  • Light End Force: Zinc Plated Nose
  • Easy installation and removal
  • Withstands high torque
  • One-piece body no set screw in back

Finish
Clear Zinc
Locking Element
Yes
End Force
Light
Initial End Force
0.75 lbf
Final End Force
2.50 lbf

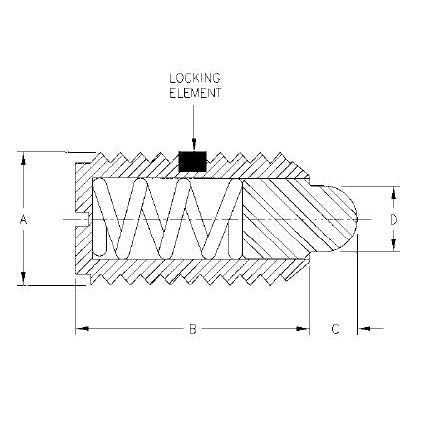

Thread Size (A)
10-32
Body Length (B)
0.469 in
Projection Size (C)
0.065 in
Nose Diameter (D) +.000-.001
0.093 in
Body Material
12L14 Steel
Nose Material
White Delrin
Weight per 100 pcs
0.16 lb
