Brand: Te-Co

Te-Co 53524 Short Spring Plungers - Standard Travel - Stainless Steel Body, Delrin Nose 3/8-16

SKU: TC-53524
MPN: 53524

$8.40
Unit price per
Save $4.25

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $100 minimum for all Te-Co product orders*

Short Description

Te-Co 53524 Short Spring Plungers - Standard Travel - Stainless Steel Body, Delrin Nose 3/8-16
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

Te-Co 53524 Short Spring Plungers - Standard Travel - Stainless Steel Body, Delrin Nose 3/8-16

Technical Specifications:

Material:
Steel Body: 12L14 Steel
Stainless Steel Body: 303 Stainless Steel
Steel Plunger: 12L14 Steel, Case Hardened
Stainless Steel Plunger: 303 Stainless Steel
Heavy End Force: Black Oxide Finish
Light End Force: Zinc Plated Nose
Easy installation and removal
Withstands high torque
One-piece body no set screw in back

Locking Element	Yes
End Force	Light
Initial End Force	1.50 lbf
Final End Force	5.00 lbf

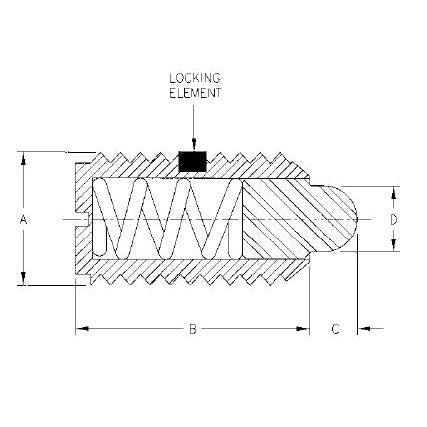

Thread Size (A)	3/8-16
Body Length (B)	0.625 in
Projection Size (C)	0.110 in
Nose Diameter (D) +.000-.001	0.186 in
Body Material	303 Stainless Steel
Nose Material	White Delrin
Weight per 100 pcs	0.90 lb
