Brand: Te-Co

Te-Co 63723 Metric Spring Plungers - Stainless Steel Body, Stainless Steel Nose M12X1.75

SKU: TC-63723
MPN: 63723

$11.41
Unit price per
Save $5.79

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $100 minimum for all Te-Co product orders*

Short Description

Te-Co 63723 Metric Spring Plungers - Stainless Steel Body, Stainless Steel Nose M12X1.75
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

Te-Co 63723 Metric Spring Plungers - Stainless Steel Body, Stainless Steel Nose M12X1.75

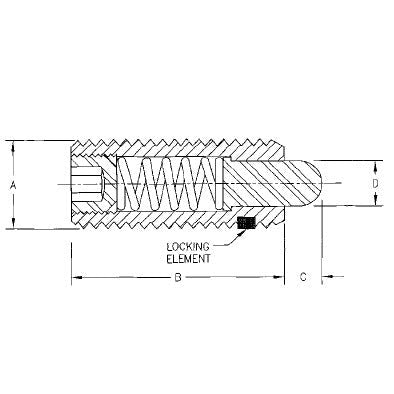

Technical Specifications:

Material:
Surface finish:

Finish	Black Oxide
Initial End Force	10.00 N
Final End Force	24.50 N
Thread Size (A)	M12 x 1.75
Body Length (B)	1.102 in 28.00 mm
Projection Size (C)	0.157 in 4.00 mm
Nose Diameter (D)	6.00 mm
Body Material	303 Stainless Steel
Pin Material	303 Stainless Steel
Locking Element	Yes
Width Across Flats (E)	0.188 in 4.78 mm
