Brand: INDUSTRIAL MAGNETICS

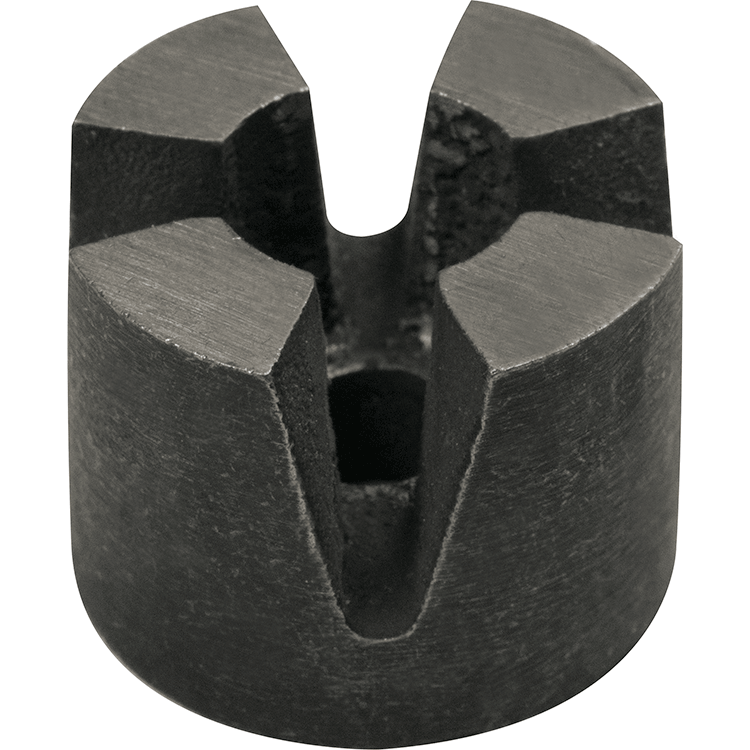

Industrial Magnetics MAG-MATE® Alnico-5 Rotor/Side 6 Pole Magnet 5H177
SKU: IM-5H177
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Industrial Magnetics MAG-MATE® Alnico-5 Rotor/Side 6 Pole Magnet 5H177. Alnico. Alnico magnet material is an alloy made up of aluminum, nickel, cobalt and copper, with a rough cast surface which can be ground to close dimensions and to a bright metallic finish.*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Industrial Magnetics MAG-MATE® Alnico-5 Rotor/Side 6 Pole Magnet 5H177
Alnico magnet material is an alloy made up of aluminum, nickel, cobalt and copper, with a rough cast surface which can be ground to close dimensions and to a bright metallic finish. Alnico is electrically conducted, can be E.D.M.'d to form holes and shapes, and can be plated. Alnico is available in a wide variety of shapes and sizes and is typically oriented magnetically through its length. Ideal for high heat applications, alnico can withstand operating temperatures up to 800°F.
Raw magnet material is available in many different types, shapes, sizes and strengths. When selecting magnetic material to perform a given task, certain specifications need to be considered: dimensions, direction of the materials, magnetic orientation, tolerances, finish, strength, and the type of raw magnetic material desired, such as Rare Earth magnets, Ceramic magnets or even Flexible magnetic rubber. Mag-Mate raw magnet material meets Magnetic Materials Producers Association (MMPA) standards for physical quality and magnetic properties.
| Alnico Cylindrical Material | ||||
| Part No. | Holding Value lbs. (kg) | Diameter(in) | Length(in) | Weight (lbs) |
|---|---|---|---|---|
| A5RC018X100 | 0.75 (0.34) | 0.1875 | 1.00 | 0.01 |
| A5RC025X200 | 1.125 (0.51) | 0.250 | 2.00 | 0.05 |
| A5RC037X200 | 3.0 (1.36) | 0.375 | 2.00 | 0.05 |
| A5RC050X300 | 4.0 (1.81) | 0.500 | 3.00 | 0.15 |
| A5RC087X300 | 6.0 (2.72) | 0.875 | 3.00 | 0.50 |
| Alnico Rectangular Material | |||||
| Part No. | Holding Value lbs. (kg.) | Thickness (in) | Width (in) | Length (in) | Weight (lbs) |
|---|---|---|---|---|---|
| ABAR025X025X100 | 0.75 (0.34) | 0.25 | 0.25 | 1.0 | 0.01 |
| ABAR037X037X150 | 2.0 (0.90) | 0.375 | 0.375 | 1.50 | 0.05 |
| ABAR050X050X200 | 4.5 (2.04) | 0.50 | 0.50 | 2.0 | 0.15 |
| Alnico Rotors | |||||||
| Part No. | Holding Value lbs. (kg.) | Outer Diameter (in) | Inner Diameter (in) | Height (in) | Socket | Weight (lbs) | Number Of Poles |
|---|---|---|---|---|---|---|---|
| 5X11B | 8.0 (3.62) | 1.000 | 0.500 | 0.750 | 1/4-20 | 0.102 | 4 |
| 5H177 | 12.0 (5.44) | 1.250 | 0.625 | 0.750 | 1/4-20 | 0.163 | 6 |
| 5X13B | 35.0 (15.87) | 2.000 | 1.000 | 1.250 | 1/2-13 | 0.702 | 8 |
