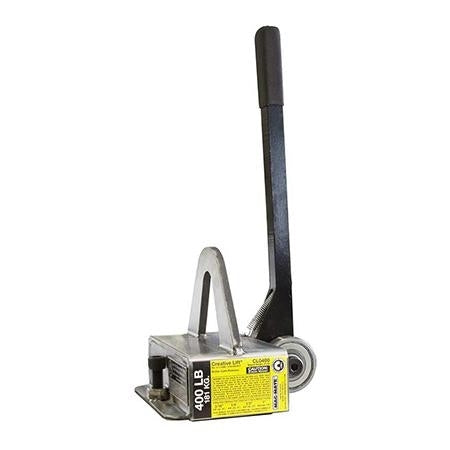

Industrial Magnetics MAG-MATE ® Creative Lift ® Lift Magnet 400 lb lift Capacity, 3:1 Design Factor CL0400

Brand: INDUSTRIAL MAGNETICS

Industrial Magnetics MAG-MATE ® Creative Lift ® Lift Magnet 400 lb lift Capacity, 3:1 Design Factor CL0400

SKU: IM-CL0400
MPN: CL0400

  • $556.36
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Industrial Magnetics MAG-MATE® Creative Lift® Lift Magnet 400 lb lift Capacity, 3:1 Design Factor CL0400

CREATIVE LIFT® MAGNETS

Permanent lift magnets are ideal for handling steel plates, die castings, forgings, etc. They eliminate the need for
clamping devices, slings, or chains. One person can perform operations previously calling for two or more people.
Features
€¢ The original Non-Marring Roller Cam Release will easily release parts without gouging your valuable materials
€¢ Spring return handle
€¢ Less torque required to release load
€¢ €œJack Screw€, Secondary Release
€¢ RFID Enabled
€¢ Lift capacity clearly stated on the magnet
€¢ Durable Stainless Steel Casing
€¢ Heat Resistant up to 300°F (148°C)
€¢ 3:1 Design Factor
€¢ ASME B30.20 BTH-1 Design Category B Service Class 3

  WLL Overall Magnet Bail Opening
Model No. LBS KG Height (in) Width (in) Length (in) Handle Length (in) Height (in) Width (in) Length (in) No. of Poles Thickness (in) Height (in) Width (in) Weight (lbs)
CL0400 400 181  6-3/4  7-1/4  7-3/4 16  2-1/2  6-1/2 4 4  3/8  2-7/8 3 21
Working Load Limit (WLL) in lbs (kg) & *Maximum Sheet Length Due To Sag For Material Thickness For Single Magnet Use
Model No.  3/16" (6' Length)  1/4" (6' Length)  3/8" (8' Length)  1/2" (8' Length)  3/4" (8' Length)  1" (10' Length)  3" (10' Length)
CL0400  400 (181)  400 (181)  400 (181)  400 (181)  400 (181)  400 (181)  400 (181)
