Industrial Magnetics MAG-MATE ® FXP Lift Magnet 1450 Lbs Cap. FXP1450

Short Description

Full Description

Industrial Magnetics MAG-MATE® FXP Lift Magnet 1450 Lbs Cap. FXP1450

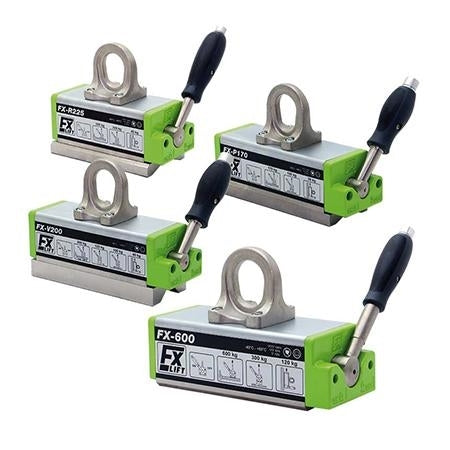

FX Permanent Rare-Earth Lift Magnet Series

These on/off permanent lifts offer strength in a lightweight, compact package. Each line of lifting magnets in the FX family of products has been specifically designed for maximum performance by user application. The size, shape and dimension of the parts you'll primarily be lifting - whether flat, curved, or circular-shaped - will determine the best FX lift magnet for you.

On all magnets in the series, the unique handle design only requires a 90° rotation to either engage or disengage the magnet (versus the 120°or even 180°required on most on/off lifting magnets), making it easy for operators to use in applications where the magnet is lifting something from inside a bin or a deep trough. The handle also features a positive lock-on/lock-off mechanism that requires the operator to manually switch between the two states. This prevents the handle from being turned only partially on, or from being accidentally bumped to the ‚¬œoff‚¬ position and dropping the load pre-maturely.

• ON/OFF, Rare-Earth Permanent Magnet
• Handle locks in both the On & Off positions for safety
• Lifts flat sheets or curved pipe
• Heat resistant up to 180° F (82° C)
• 3:1 design factor
• Meets 2018 ASME B30.20 BTH-1 Design Category B Service Class


FX Models:

FX - For primarily lifting thick, flat stock, with the occasional need to lift something curved, such as a pipe, shaft, or billet.
FXP - Mostly for thin sheets, tanks/containers and thin wall pipe
FXR - Mostly round/curved surfaces such as shafts, thick wall pipe, billets and occasional flat material
FXV- Mainly angle iron (90°), I-beam web location where you need the handle rotation higher & hot parts up to 482°F

FX lift magnets are manufactured by Flaig Magnetsysteme in Germany. IMI is the exclusive North American distributor.

Note: Never stand under load being lifted. Always use extra caution. Only use magnetic lifts on material that does not flex or bend. The surface of the lift, and the load being lifted, need to be clean and free of chips, oil, slag, dirt, etc. Lifting magnets must be centered on load. Not recommended for painted or finish coated surfaces.
