Brand: Northwestern Tools

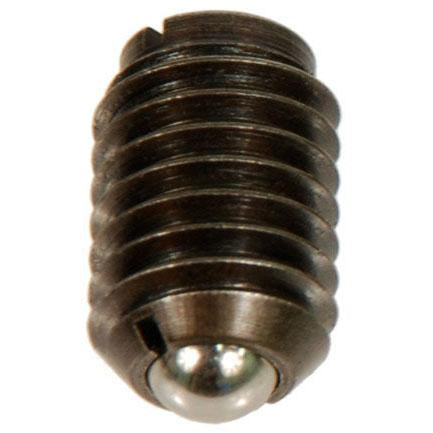

NORTHWESTERN TOOLS 10018P Ball Plungers - Steel - Stainless Ball, End Force: 6.0 Initial x 12.0 Final, Ball Dia: .281

SKU: NW-10018P
MPN: 10018P

$3.97
Unit price per
Save $2.01

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $200 minimum for all Northwestern Tools product orders*

Short Description

NORTHWESTERN TOOLS 10018P Ball Plungers - Steel - Stainless Ball, End Force: 6.0 Initial x 12.0 Final, Ball Dia: .281
Northwestern Part Number: 10018P
Carr Lane equivalent: N/A

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**

Full Description

NORTHWESTERN TOOLS 10018P Ball Plungers - Steel - Stainless Ball, End Force: 6.0 Initial x 12.0 Final, Ball Dia: .281

Ball Plungers - Steel - Stainless Ball, End Force: 6.0 Initial x 12.0 Final, Ball Dia: .281

Northwestern Part Number: 10018P

Carr Lane equivalent: N/A

Product Information

Steel Ball Plungers (Stainless Ball)

Steel bodies are 12L14 steel.

Bodies are color coded.

Plain is 303 stainless steel.

The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element.

To prevent possible spring damage, use of a Northwestern Wrench is recommended when installing from plunger end.

End pressures are given in pounds. Full pressures are the force pounds needed to move the ball the distance shown in "C" column.

#6-40 and smaller have no slot in ball end

Steel Ball Plungers (Stainless Ball)
With Lock. Ele.Part #	W/O Lock. Ele.Part #	**Color Code	End Press. - Lbs. Start	End Press. - Lbs. Full	A	B	C	Ball Dia. D	Net Lbs. Per 100
*10001B	10001BP	Plain	0.12	0.5	# 4-48	3/16	.020	.062	1/4
*10002B	10002BP	Plain	0.25	0.75	# 5-40	1/4	.020	.062	1/4
*10003B	10003BP	Plain	0.5	1.0	# 6-40	5/16	.023	.078	1/4
*10004B	10004BP	Plain	0.5	1.25	# 8-36	11/32	.025	.093	1/4
*10100B	10100BP	Plain	0.5	1.25	# 8-32	11/32	.025	.093	1/4
10005	10005P	Silver	0.5	1.5	# 10-32	33/64	.025	.093	1/4
10006	10006P	Black	1.5	3.0	# 10-32	33/64	.025	.093	1/4
10007	10007P	Gold	2.0	5.0	# 10-32	33/64	.025	.093	1/4
10008	10008P	Silver	2.0	4.0	1/4-20	17/32	.035	.125	1/2
10009	10009P	Black	3.0	7.0	1/4-20	17/32	.035	.125	1/2
10010	10010P	Gold	4.0	12.0	1/4-20	17/32	.035	.125	1/2
10011	10011P	Silver	2.0	4.5	5/16-18	37/64	.040	.156	1
10012	10012P	Black	4.0	9.0	5/16-18	37/64	.040	.156	1
10013	10013P	Gold	6.0	17.0	5/16-18	37/64	.040	.156	1
10014	10014P	Silver	2.5	5.0	3/8-16	5/8	.048	.187	1-1/2
10015	10015P	Black	5.0	10.0	3/8-16	5/8	.048	.187	1-1/2
10016	10016P	Gold	6.0	21.0	3/8-16	5/8	.048	.187	1-1/2
10017	10017P	Silver	3.0	6.0	1/2-13	3/4	.072	.281	3
10018	10018P	Black	6.0	12.0	1/2-13	3/4	.072	.281	3
10019	10019P	Gold	6.0	30.0	1/2-13	3/4	.072	.281	3
10020	10020P	Silver	4.5	9.0	5/8-11	63/64	.096	.375	5-1/2
10021	10021P	Black	9.0	18.0	5/8-11	63/64	.096	.375	5-1/2
10022	10022P	Gold	7.0	50.0	5/8-11	63/64	.096	.375	5-1/2

** Silver - Light Pressures, Black - Medium Pressures, Gold - Heavy Pressures

All Parts conform to TCMAI Standards
