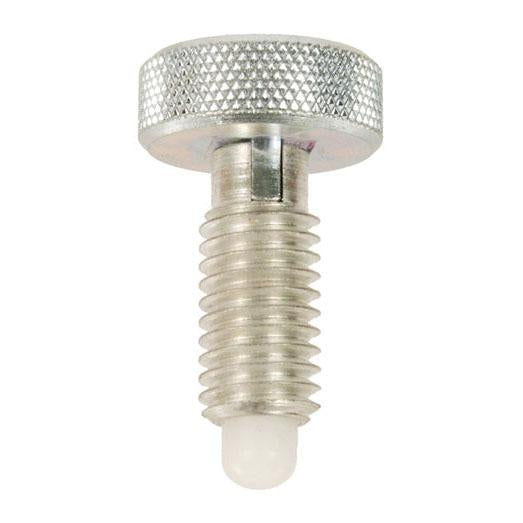

NORTHWESTERN TOOLS 33609 Hand Retractable Plungers - Knurled Head Plungers - Locking Radiused Delrin Nose - Steel - Light Pressure, End Force: 0.5 Initial x 2.5 Full
SKU: NW-33609
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 33609 Hand Retractable Plungers - Knurled Head Plungers - Locking Radiused Delrin Nose - Steel - Light Pressure, End Force: 0.5 Initial x 2.5 FullNorthwestern Part Number: 33609
Carr Lane equivalent: N/A
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**
Full Description
NORTHWESTERN TOOLS 33609 Hand Retractable Plungers - Knurled Head Plungers - Locking Radiused Delrin Nose - Steel - Light Pressure, End Force: 0.5 Initial x 2.5 Full
Hand Retractable Plungers - Knurled Head Plungers - Locking Radiused Delrin Nose - Steel - Light Pressure, End Force: 0.5 Initial x 2.5 Full
Northwestern Part Number: 33609
Carr Lane equivalent: N/A
Product Information Steel or Stainless Steel Knurled Head Plungers with Radiused Delrin Nose - LockingUsed in machining applications as positioners, loading pins, indexing devices. Improved design allows plunger nose to be locked in a fully retracted position. Plunger nose has a chamfered end to assure easy alignment. Full pressures are the force pounds needed to move the nose the distance shown in "C" column. Steel parts are 12L14 material, zinc plated and heat treated. All stainless steel parts are 303 material. The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element. Plunger can be withdrawn completely into the body and locked in a fully retracted position. To engage the plunger, simply turn to line up with slot in body. Available with or without locking element. |
| Steel or Stainless Steel Knurled Head Plungers with Radiused Delrin Nose - Locking | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Heavy Pressure | ||||||||||
| Steel Part No. |
Stainless Steel Part No. | End Pressures Lbs. Start |
End Pressures Lbs. Full |
A | B | C | D | E | F | Net Lbs. Per 100 |
| 33601 | 33617 | 1.0 | 5.0 | 1/4-20 | 1/2 | 1/8 | .144 | 1/4 | 1/2 | 3 |
| 33602 | 33618 | 1.5 | 6.0 | 5/16-18 | 5/8 | 3/16 | .179 | 9/32 | 5/8 | 5 |
| 33603 | 33619 | 1.5 | 8.0 | 3/8-16 | 3/4 | 7/32 | .216 | 5/16 | 3/4 | 7 |
| 33604 | 33620 | 2.5 | 10.0 | 1/2-13 | 7/8 | 1/4 | .310 | 3/8 | 1" | 13 |
| 33605 | 33621 | 5.0 | 10.0 | 5/8-11 | 1" | 5/16 | .373 | 13/32 | 1-1/8 | 20 |
| Light Pressure | ||||||||||
| 33609 | 33625 | 0.5 | 2.5 | 1/4-20 | 1/2 | 1/8 | .144 | 1/4 | 1/2 | 3 |
| 33610 | 33626 | 0.5 | 3.0 | 5/16-18 | 5/8 | 3/16 | .179 | 9/32 | 5/8 | 5 |
| 33611 | 33627 | 0.75 | 4.0 | 3/8-16 | 3/4 | 7/32 | .216 | 5/16 | 3/4 | 7 |
| 33612 | 33628 | 0.75 | 5.0 | 1/2-13 | 7/8 | 1/4 | .310 | 3/8 | 1" | 13 |
| 33613 | 33629 | 1.25 | 6.0 | 5/8-11 | 1" | 5/16 | .373 | 13/32 | 1-1/8 | 20 |
**Please note, this item is nonrefundable.**
