Brand: Northwestern Tools

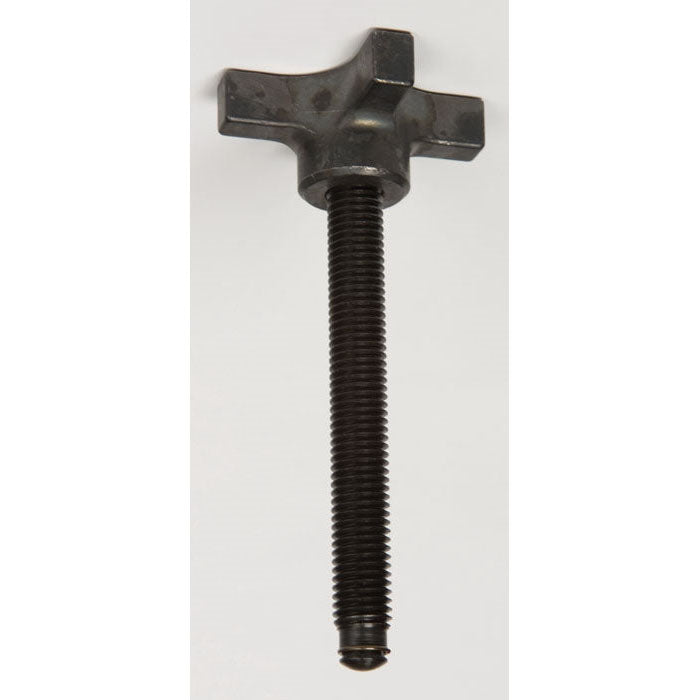

NORTHWESTERN TOOLS 44021 Toggle Shoe Clamps with Retaining Spring - With Hand Knob - Thread: 5/8-11; Overall Thread: 3-3/4
SKU: NW-44021
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 44021 Toggle Shoe Clamps with Retaining Spring - With Hand Knob - Thread: 5/8-11; Overall Thread: 3-3/4Northwestern Part Number: 44021
Carr Lane equivalent: N/A
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
NORTHWESTERN TOOLS 44021 Toggle Shoe Clamps with Retaining Spring - With Hand Knob - Thread: 5/8-11; Overall Thread: 3-3/4
Toggle Shoe Clamps with Retaining Spring - With Hand Knob - Thread: 5/8-11; Overall Thread: 3-3/4
Northwestern Part Number: 44021
Carr Lane equivalent: N/A
Product Information With Hand KnobFor solid clamping on angular surfaces. Special spring permits shoe to stop rotating on contact with workpiece preventing marring of soft materials and finished surfaces. Heat Treated Steel Black Oxide Finish |
With Hand Knob | ||||||
---|---|---|---|---|---|---|
Part No. | Thread | Overall Thread |
Overall Length |
Knob Pt. No. |
Hex A.F. |
Net Lbs. Per 100 |
44001 | 1/4-20 | 1-3/16 | 1-13/16 | 17401 | 1/8 | 7 |
44002 | 1/4-20 | 1-15/16 | 2-9/16 | 17401 | 1/8 | 8 |
44003 | 1/4-20 | 2-11/16 | 3-5/16 | 17401 | 1/8 | 9 |
44004 | 1/4-20 | 3-7/16 | 4-1/16 | 17401 | 1/8 | 10 |
44005 | 5/16-18 | 1-1/4 | 2-1/8 | 17403 | 5/32 | 12 |
44006 | 5/16-18 | 2" | 2-7/8 | 17403 | 5/32 | 14 |
44007 | 5/16-18 | 2-3/4 | 3-5/8 | 17403 | 5/32 | 15 |
44008 | 5/16-18 | 3-1/2 | 4-3/8 | 17403 | 5/32 | 16 |
44009 | 3/8-16 | 1-1/4 | 2-1/4 | 17405 | 3/16 | 21 |
44010 | 3/8-16 | 2" | 3" | 17405 | 3/16 | 22 |
44011 | 3/8-16 | 2-3/4 | 3-3/4 | 17405 | 3/16 | 24 |
44012 | 3/8-16 | 3-1/2 | 4-1/2 | 17405 | 3/16 | 26 |
44013 | 1/2-13 | 4-1/4 | 5-1/4 | 17407 | 3/16 | 27 |
44014 | 1/2-13 | 2" | 3-1/8 | 17407 | 1/4 | 39 |
44015 | 1/2-13 | 2-3/4 | 3-7/8 | 17407 | 1/4 | 42 |
44016 | 1/2-13 | 3-1/2 | 4-5/8 | 17407 | 1/4 | 45 |
44017 | 1/2-13 | 4-1/4 | 5-3/8 | 17407 | 1/4 | 49 |
44018 | 1/2-13 | 5" | 6-1/8 | 17407 | 1/4 | 52 |
44019 | 5/8-11 | 2-1/4 | 3-1/2 | 17410 | 5/16 | 70 |
44020 | 5/8-11 | 3" | 4-1/4 | 17410 | 5/16 | 74 |
44021 | 5/8-11 | 3-3/4 | 5" | 17410 | 5/16 | 79 |
44022 | 5/8-11 | 4-1/2 | 5-3/4 | 17410 | 5/16 | 83 |
44023 | 5/8-11 | 5-1/4 | 6-1/2 | 17410 | 5/16 | 90 |
