Brand: INDUSTRIAL MAGNETICS

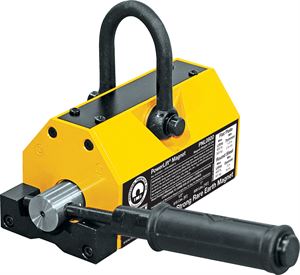

Industrial Magnetics MAG-MATE ® PowerLift ® Lift Magnet 800 lb lift Capacity, 3:1 Design Factor PNL0800
SKU: IM-PNL0800
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Industrial Magnetics MAG-MATE® PowerLift® Lift Magnet 800 lb lift Capacity, 3:1 Design Factor PNL0800. These compact switchable Rare Earth permanent lift magnets can be used on flat or roundsurfaces and contain an internal release On/Off device that does not contact or damage thesurface of the part being lifted. Permanent magnetic lifts eliminate the fear of dropping theload being lifted due to power failures.*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Industrial Magnetics MAG-MATE® PowerLift® Lift Magnet 800 lb lift Capacity, 3:1 Design Factor PNL0800
POWERLIFT® MAGNETS
These compact switchable Rare Earth permanent lift magnets can be used on flat or round
surfaces and contain an internal release On/Off device that does not contact or damage the
surface of the part being lifted. Permanent magnetic lifts eliminate the fear of dropping the
load being lifted due to power failures.
The locking system is performed by first pulling on the handle to release the lock pin, then
rotating the handle to the desired position. The locking feature prevents the handle from
being bumped partially ‚¬œOn‚¬ and avoids giving the operator a false feeling that the magnet
is holding safely.
Features
‚¬¢ On/Off Rare Earth Permanent Magnet
‚¬¢ Handle locks in both On and Off position
‚¬¢ Lifts flat or round loads (see chart below)
‚¬¢ Easy internal manual release does not contact the load
‚¬¢ RFID Enabled
‚¬¢ Heat resistant up to 180°F (82°C)
‚¬¢ 3:1 Design Factor
‚¬¢ ASME B30.20 BTH-1 Design Category B Service Class 3
| WLL | Overall | Magnet | Handle | Bail | ||||||||
| Model No. | LBS | KG | Height (in) | Length (in) | Height (in) | Width (in) | Length (in) | Length (in) | Thickness (in) | Height (in) | Width (in) | Weight (lbs) |
| PNL0800 | 800 | 363 | 8-7/8 | 7-7/8 | 3-7/8 | 3-5/8 | 6-3/8 | 8 | 1/2 | 2-3/8 | 1-3/4 | 21 |
| Working Load Limit (WLL)in lbs (kg) & *Max Sheet Length Due To Sag For Material Thickness For Single Magnet Use | Round Lifting Applications | |||||||||||
| Model No. | 1/4" (6' Ln | '3/8" (8' Ln) | 1/2" (8' Ln) | 3/4" (8' Ln) | 1" (10' Ln) | 2" (10' Ln) | 3" (10' Ln Length) | WLL - lbs (kg) | Min. Dia. (in) | Min. Th. (in) | ||
| PNL0800 | 270 | (122)'500 | (226)'615 | (279)'800 | (362)'800 | (363)'800 | (363)'800 | (362)'400 | (181)'3 | 1/2 | ||
