Brand: Raptor Workholding Products

Raptor RWP-003 Aluminum 5C Collet Closer 0.75" Dovetail Fixture

SKU: RPT-RWP-003
MPN: RWP-003

$610.56
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Raptor product orders*

Short Description

Raptor RWP-003 Aluminum 5C Collet Closer 0.75" Dovetail Fixture

Full Description

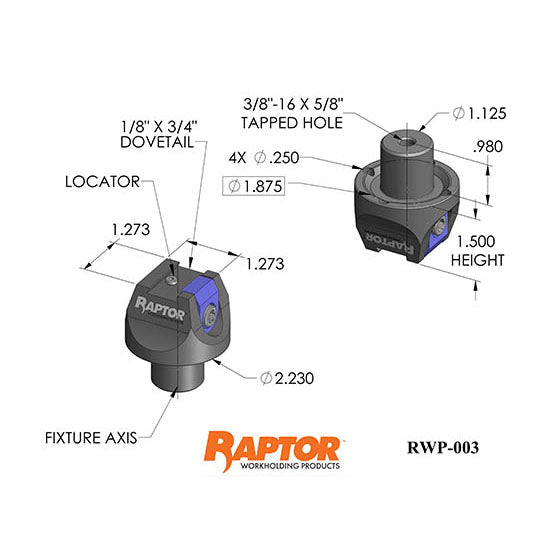

Dovetail Width in.	0.750
Dovetail Height in.	0.1250
Max Workpiece Weight lb.	3
Max Workpiece Width in.	3.00
Max Workpiece Length in.	3.00
Max Workpiece Height in.	3.00
Fixture Material	Aluminum
Number of Clamps	1
Clamp Part Number	RWP-CL302SQ
Fixture Height in.	1.500

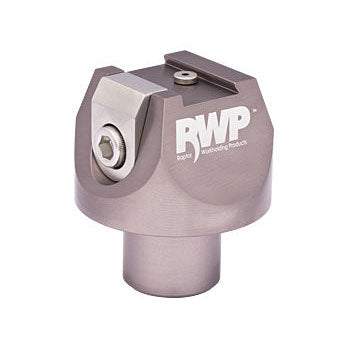

The RWP-003 can be mounted in any 5C collet closer for milling applications. It offers superior clamping strength and part access.

The standard RWP-003 is manufactured from 7075-T6511 aluminum and anodized: Class 2 Type II.
Custom materials can be special-ordered.

The fixture clamps are made from 17-4 Stainless Steel.

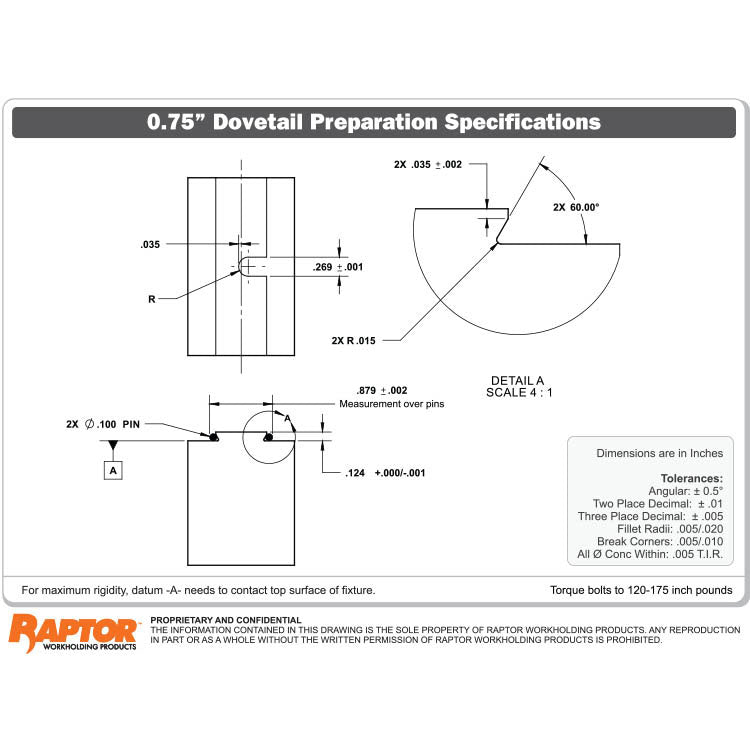

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece– Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.

* Typical workpiece size dimensions (L x W x H): From: 1.273? x 1.3? x 0.50? To: 3.0? x 3.0? x 3.0?

Patented Design. Patent US8,672,310 B2
