Raptor RWP-001 Aluminum 1.5" Dovetail Fixture 3.8" Dia. BC

SKU: RPT-RWP-001
MPN: RWP-001

$1,016.28
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Raptor product orders*

Short Description

Raptor RWP-001 Aluminum 1.5" Dovetail Fixture 3.8" Dia. BC

Full Description

Dovetail Width in.	1.500
Dovetail Height in.	0.1250
Max Workpiece Weight lb.	30
Max Workpiece Width in.	6.75
Max Workpiece Length in.	6.75
Max Workpiece Height in.	6.75
Fixture Material	Aluminum
Number of Clamps	2
Clamp Part Number	RWP-CL301SQ

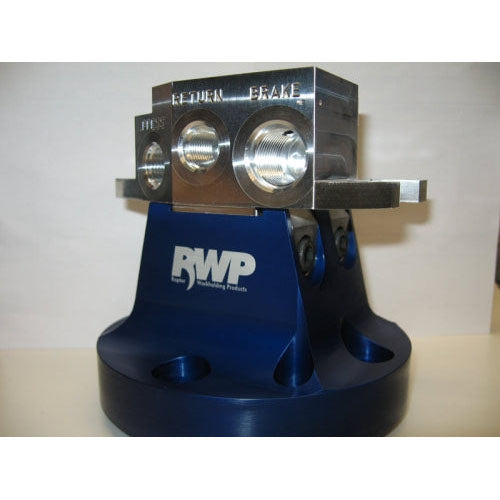

The RWP-001 is a 1.5? dovetail fixture for milling applications used in four and five axis CNC machining. This fixture offers superior clamping strength while allowing access to five sides of the workpiece. Most machining can be completed in a single operation.

The standard RWP-001 is manufactured from 7075-T6511 aluminum and anodized: Class 2 Type II.

The fixture clamps are made from 17-4 Stainless Steel.

The spring-loaded clamping system and the dovetail design only require 1/8? of material to hold the workpiece in place. That means less waste, easier prep and no distortion. Prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.

* Typical workpiece size dimensions (L x W x H): From: 2.35? x 2.25? x 0.50? To: 6.75? x 6.75? x 6.75?. Maximum workpiece weight: 30 lbs.

*Notation: If the workholding application is for a direct mount to a Matsuura MAM72-35V Metric Table/Pallet configuration, then Raptor has a modified fixture design for this configurations. Please note Part Number: RWP-001SSMM Complete Metric Design.

Patented Design. Patent US8,672,310 B2

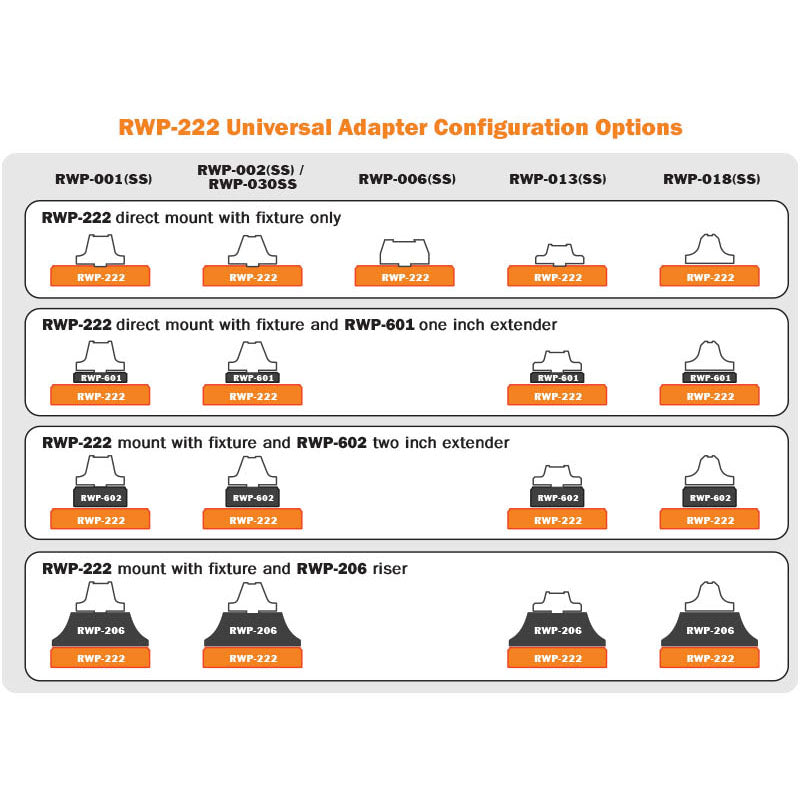

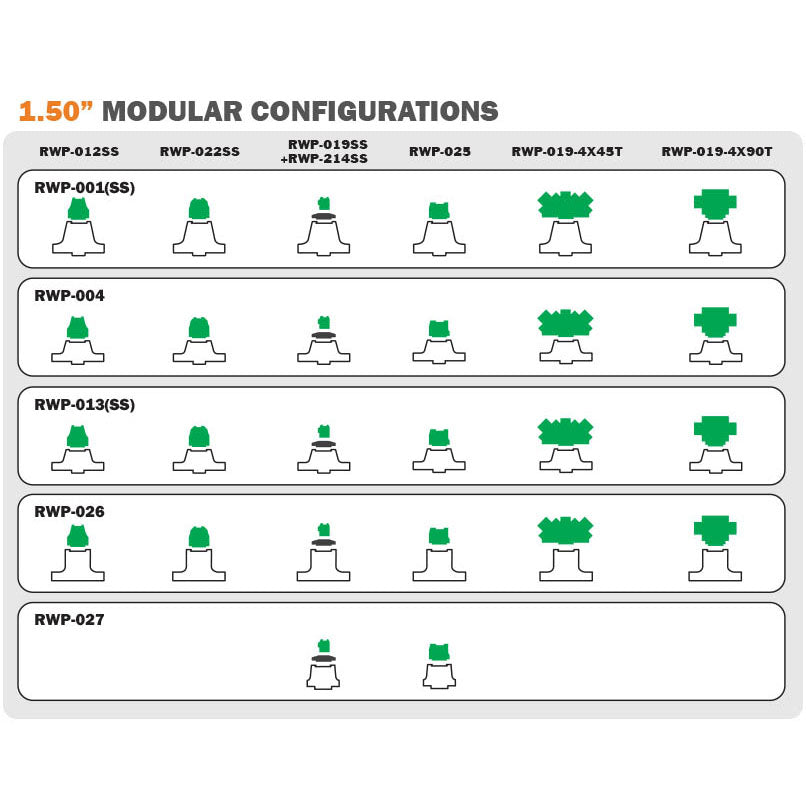

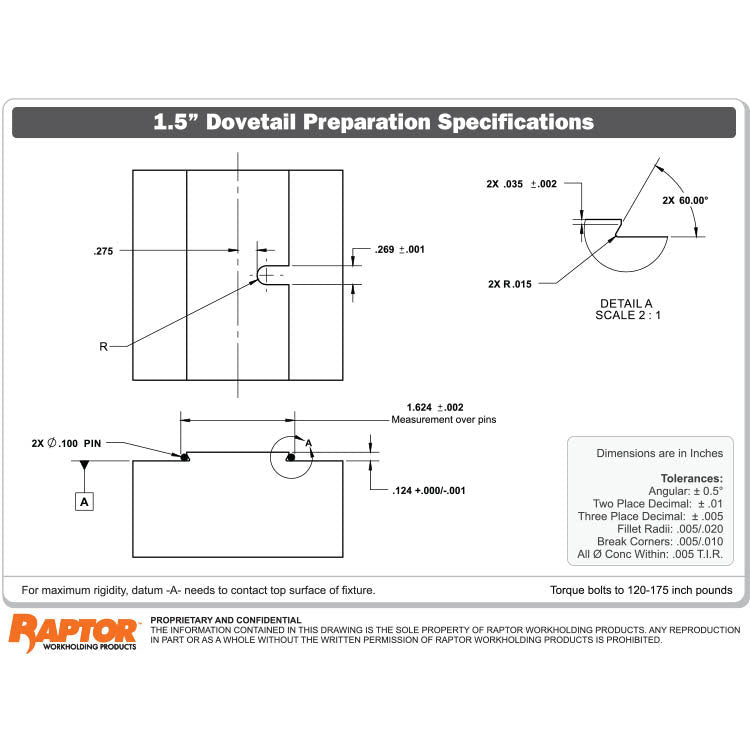

1.5" Dovetail Preparation Specifications
