Brand: Raptor Workholding Products

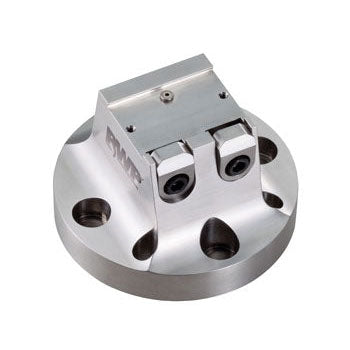

Raptor RWP-001SS Stainless Steel 1.5" Dovetail Fixture 3.8" Dia. BC

SKU: RPT-RWP-001SS
MPN: RWP-001SS

$1,864.55
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Raptor product orders*

Short Description

Raptor RWP-001SS Stainless Steel 1.5" Dovetail Fixture 3.8" Dia. BC

Full Description

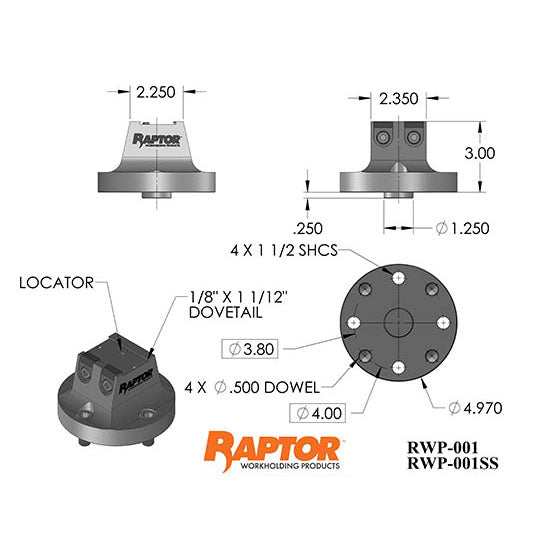

Dovetail Width in.	1.500
Dovetail Height in.	0.1250
Max Workpiece Weight lb.	30
Max Workpiece Width in.	6.75
Max Workpiece Length in.	6.75
Max Workpiece Height in.	6.75
Fixture Material	Stainless Steel
Number of Clamps	2
Clamp Part Number	RWP-CL301SQ
Fixture Height in.	3.000

You asked for it – we built it! For those that want the ultimate in strength and wear resistance we now offer the RWP-001SS. This 1.5? dovetail fixture is utilized for milling applications. It offers superior clamping strength while allowing access to five sides of the workpiece.

The standard RWP-001SS is manufactured from 17-4 Stainless Steel Heat Treated to H-1150.

The fixture clamps are made from 17-4 Stainless Steel.

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.

* Typical workpiece size dimensions (L x W x H): From: 2.35? x 2.25? x 0.50? To: 6.75? x 6.75? x 6.75?

Patented Design. Patent US8,672,310 B2

HAVE AN EDM APPLICATION?

USE RAPTOR’S STAINLESS STEEL DOVETAIL FIXTURES

Our stainless steel fixtures and clamps are made from 17-4 stainless steel; Heat Treat: H-1150 / Rockwell Hardness Approximate 28.

ONE-STEP SETUP

Switch from a standard application to an EDM application in a single step: Simply substitute the clamping system socket head cap screws from alloy steel to stainless steel.

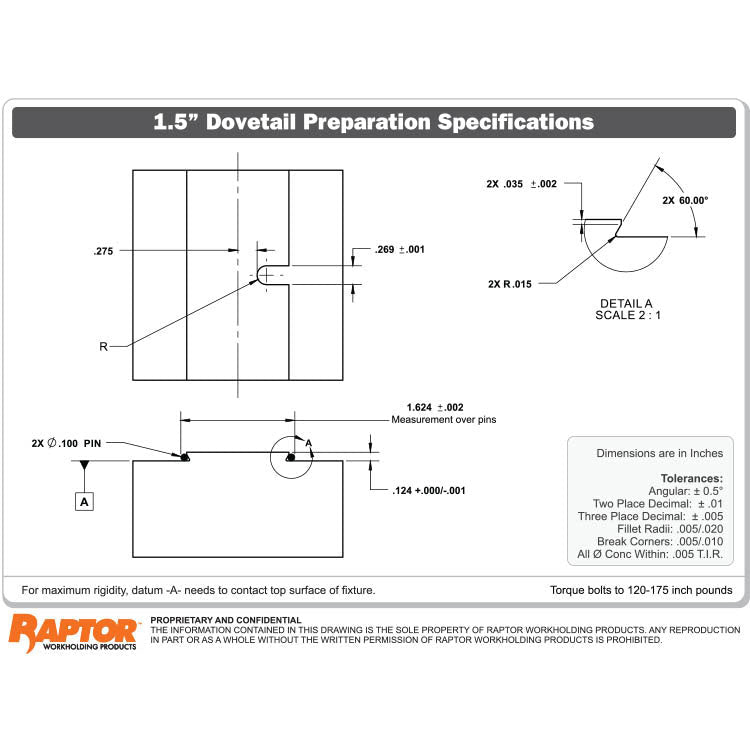

1.5" Dovetail Preparation Specifications
