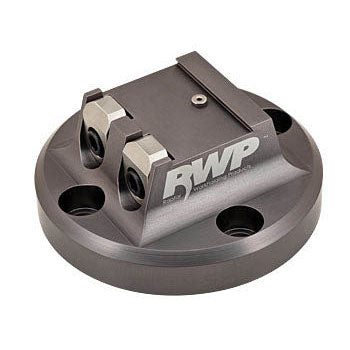

Raptor RWP-013 Aluminum 1.5" Dovetail Fixture 3.8" Dia. BC

SKU: RPT-RWP-013
MPN: RWP-013

$1,030.43
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Raptor product orders*

Short Description

Raptor RWP-013 Aluminum 1.5" Dovetail Fixture 3.8" Dia. BC

Full Description

Dovetail Width in.	1.500
Dovetail Height in.	0.1250
Max Workpiece Weight lb.	30
Max Workpiece Width in.	6.75
Max Workpiece Length in.	6.75
Max Workpiece Height in.	6.75
Fixture Material	Aluminum
Number of Clamps	2
Clamp Part Number	RWP-CL301SQ
Fixture Height in.	2.000

This fixture is designed to connect directly to the Matsuura MAM 72-35V for milling applications. It can also be utilized in other machines when connected with an adapter or riser. Refer to the Related Products tab for additional information. It offers superior clamping strength while allowing access to five sides of the workpiece. It offers superior clamping strength while allowing access to five sides of the workpiece.

The standard RWP-013 is manufactured from 7075-T6511 aluminum and anodized: Class 2 Type II.
Custom materials can be special-ordered.

The fixture clamps are made from 17-4 Stainless Steel.

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece– Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.

* Typical workpiece size dimensions (L x W x H): From: 2.35? x 2.25? x 0.50? To: 6.75? x 6.75? x 6.75?

Patented Design. Patent US8,672,310 B2

1.5" Dovetail Preparation Specifications
