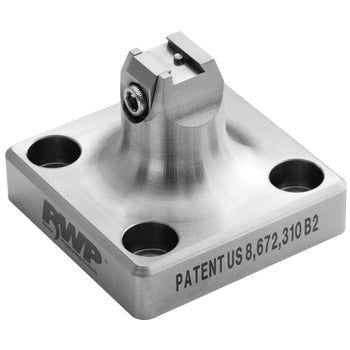

Raptor RWP-032SS Stainless Steel 0.281"W x 0.0781"H Dovetail Fixture

SKU: RPT-RWP-032SS
MPN: RWP-032SS

$978.63
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Raptor product orders*

Short Description

Raptor RWP-032SS Stainless Steel 0.281"W x 0.0781"H Dovetail Fixture

Full Description

Dovetail Width in.	0.281
Dovetail Height in.	0.0781
Max Workpiece Weight lb.	0.284
Max Workpiece Width in.	1.25
Max Workpiece Length in.	1.25
Max Workpiece Height in.	1.25
Fixture Material	Stainless Steel
Number of Clamps	1
Clamp Part Number	RWP-CL307SQ
Fixture Height in.	1.563

The RWP-032SS is a 0.281? dovetail fixture for milling applications. This is new micro design is similar to the original RWP-009SS, yet this product has a deeper dovetail, 0.0781?, to provide additional holding strength. The RWP-032SS is designed to connect to your machine using the four mounting holes.

The RWP-032SS is manufactured from 17-4 Heat Treated Stainless Steel.

The fixture clamp is made from 17-4 Stainless Steel.

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece. Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only .077? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.

* Typical workpiece size dimensions (L x W x H): From: 0.478? x 0.478? x 0.50? To: 1.25? x 1.25? x 1.25?

Patented Design. Patent US8,672,310 B2

HAVE AN EDM APPLICATION?

Use Raptor’s Stainless Steel Dovetail Fixtures

Our stainless steel fixtures and clamps are made from 17-4 stainless steel; Heat Treat: H-1150 / Rockwell Hardness Approximate 28.

One-Step Setup

Switch from a standard application to an EDM application in a single step: Simply substitute the clamping system socket head cap screws from alloy steel to stainless steel.

0.281" x 0.0781" Dovetail Preparation Specifications
